TPU Hot-Melt
Adhesive Film
High elasticity, exceptional wash resistance, and anti-yellowing properties with a soft hand feel. The ultimate bonding solution for seamless apparel, footwear lamination, and precision electronics.
Engineered for Performance
Advanced TPU formulation delivering superior bonding strength without compromising on flexibility or aesthetics.
High Elasticity
300-800% elongation at break
Wash Resistant
50+ cycles, no bubbling
Anti-Yellowing
Anti-UV, keeps light colors pure
Soft Touch
Ultra-thin 0.03mm, virtually feel-less
Eco-Friendly
100% Solid, REACH/RoHS
Easy Processing
100-140℃, wide operation window
TPU hot-melt adhesive film is a highly elastic, wash-resistant thermoplastic polyurethane film designed for precision bonding of fabrics, leather, and plastics. Compared to conventional adhesives, it offers a remarkably softer hand feel and superior anti-yellowing performance, making it the ideal choice for applications where both tactile quality and durability are non-negotiable.
Technical Data Sheet (TDS)
Typical properties and processing parameters.
| Parameter | Typical Value | Remarks |
|---|---|---|
| Product Model | XH-TPU-R30 | Customizable upon request |
| Material | Thermoplastic Polyurethane (TPU) | Polyether / Polyester options |
| Thickness | 0.03mm - 0.25mm | ±0.005mm tolerance |
| Width | 100mm - 1600mm | Slitting available |
| Melting Temperature | 100℃ - 140℃ | Adjust based on equipment |
| Processing Pressure | 2-4 kg/cm² | - |
| Processing Time | 10-30 seconds | Depends on thickness & temp |
| Wash Resistance | ≥50 Cycles | Domestic washing standard |
| Dry Clean Resistance | ≥3 Cycles | Commercial dry cleaning |
| Temperature Range | -30℃ ~ 120℃ | Long-term usage |
| Elongation at Break | 300% - 800% | Higher in polyether types |
| Eco Standards | REACH / RoHS | Test reports available |
Uncompromising Quality in Every Detail
Discover why our TPU hot-melt adhesive film is the preferred choice for premium manufacturing.
High Elasticity, Seamless Fit
Achieves up to 800% elongation at break. After lamination, the fabric retains its natural stretch and recovery without feeling stiff or restricted, perfect for activewear and intimates.
Durable Wash Resistance
Engineered for longevity. After 50 rigorous domestic wash cycles, the peel strength retention remains >85%, with absolutely no delamination, bubbling, or edge curling.
Anti-Yellowing for Light Fabrics
Features an advanced anti-UV formulation. Tested under 100 hours of UV aging with a color difference (△E) < 3, ensuring pure white and light-colored fabrics stay pristine.
Virtually Weightless Softness
Available in ultra-thin profiles down to 0.03mm. Once bonded, the adhesive layer is almost imperceptible to the touch, providing a premium feel for high-end garments and accessories.
Versatile Substrate Compatibility
Fabrics
Nylon, Polyester, Cotton
Leather
Genuine Leather, PU
Plastics
ABS, PC, Rigid PVC
Foams
EVA, Sponge, Foam
Metals
Aluminum, Stainless
Empowering Global Industries
Seamless Intimates
- • Underwear bonding
- • Bra side wings

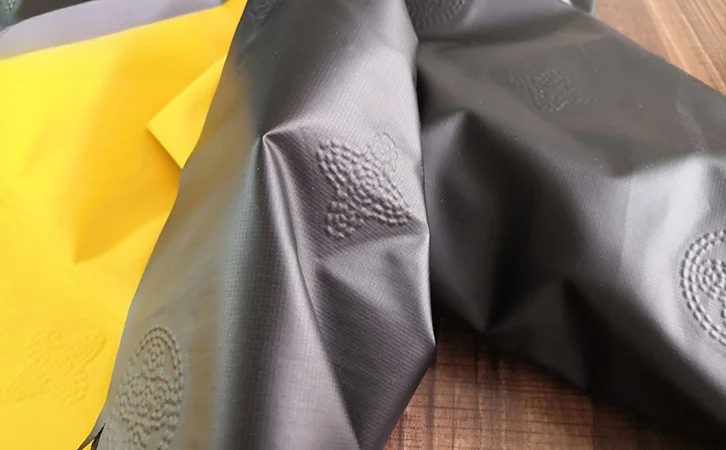

Outdoor Apparel
- • Placket & Seam sealing
- • Pocket lamination
Footwear Mfg.
- • Upper/Insole bonding
- • Toe cap reinforcement
3C Electronics
- • Phone leather covers
- • Tablet smart folios

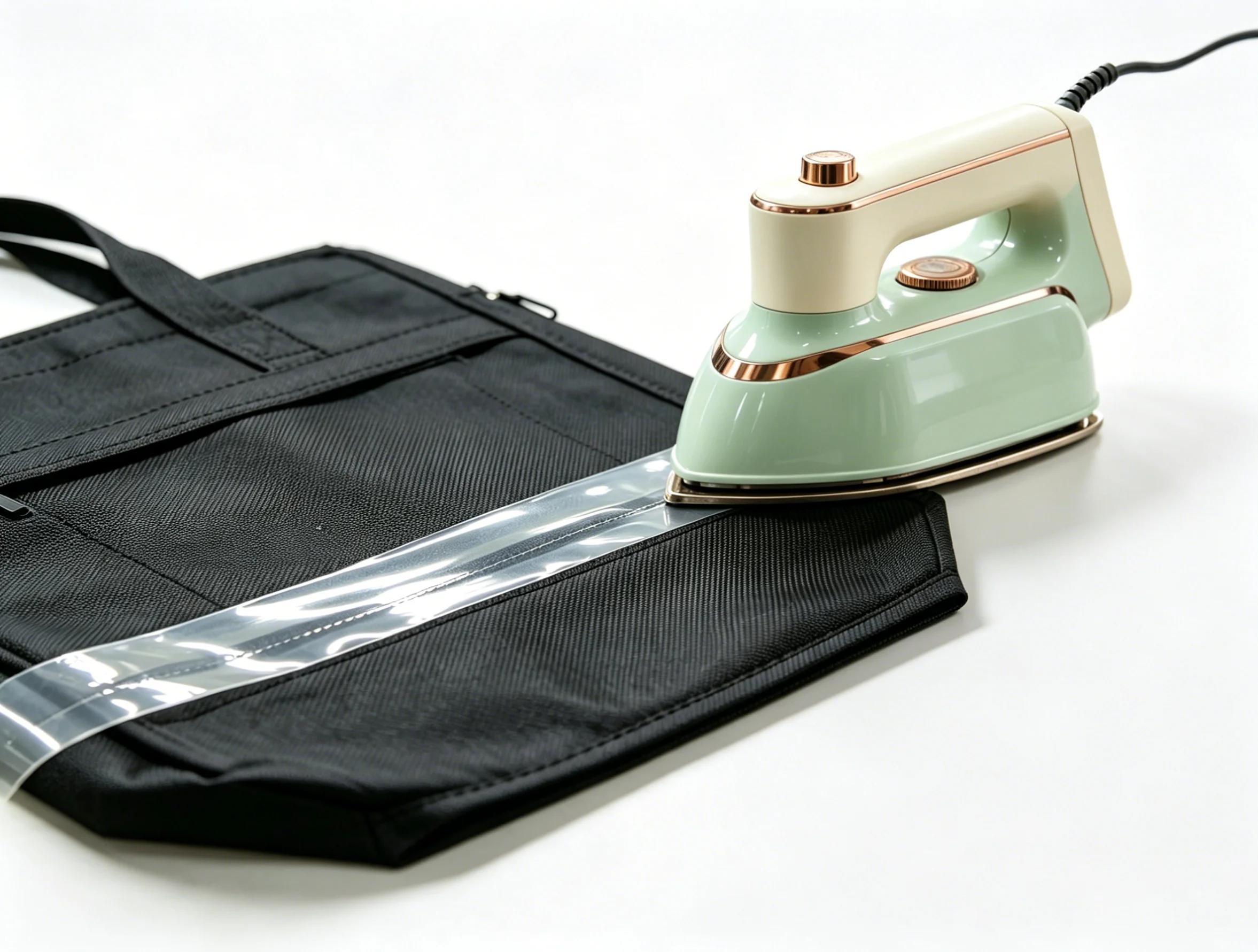

Bags & Luggage
- • Leather lamination
- • Lining composite
Processing Guidelines
Too low prevents melting; too high may cause degradation.
Excessive pressure may cause adhesive squeeze-out.
Adjust based on film thickness and substrate thermal conductivity.
Standard Operating Procedure
Pro Tip: Equipment variations exist. We strongly recommend conducting small-scale trials before mass production. We offer complimentary remote or on-site technical guidance.
Specifications & Customization
- Thickness 0.03 / 0.05 / 0.08 / 0.10 / 0.12 / 0.15 / 0.20 / 0.25 mm
- Width 100 / 200 / 500 / 1000 / 1200 / 1500 / 1600 mm
- Roll Length 100 / 200 / 300 / 500m (Customizable)
- Release Liner Single-sided / Double-sided / Linerless
- Color Transparent / Translucent / Milky White / Black (Customizable for volume orders)
Custom Engineering Available
Thickness fine-tuning (±0.005mm), custom width slitting, surface embossing, and functional additives (flame retardant, antibacterial) are available upon request.
Explore Alternative Solutions
PA Hot-Melt Film
Superior wash resistance. Ideal for shirt interlinings.
View DetailsPES Hot-Melt Film
Excellent high-temp resistance. Ideal for automotive interiors.
View DetailsEVA Hot-Melt Film
Cost-effective solution. Ideal for wall coverings & packaging.
View DetailsTPU Mesh Film
High breathability web structure. Ideal for apparel lamination.
View DetailsFrequently Asked Questions
What is the difference between TPU Film and TPU Mesh Film?
How many wash cycles can the TPU film withstand?
Will the TPU film turn yellow over time?
What is the Minimum Order Quantity (MOQ)?
Does the film comply with environmental standards?
Ready to upgrade your bonding process?
• Tell us about your substrate, we'll send the perfect sample.
• Our engineers are ready to assist with material selection.
• Request bulk pricing and current lead times.
