Elastic & Stretchable Hot Melt Adhesive Film Manufacturer
High-performance elastic hot melt adhesive films engineered for bonding stretch fabrics, elastic textiles, and flexible substrates. Available in TPU and TPE formulations for different elasticity, softness, and durability requirements. Discover our Elastic TPU Film and Elasticity Properties Guide for precision manufacturing.
Quick Buyer Specifications Matrix
Factory Direct Supply
High-Recovery Stretch Bonding
Maintains fabric elongation without delamination or restriction.

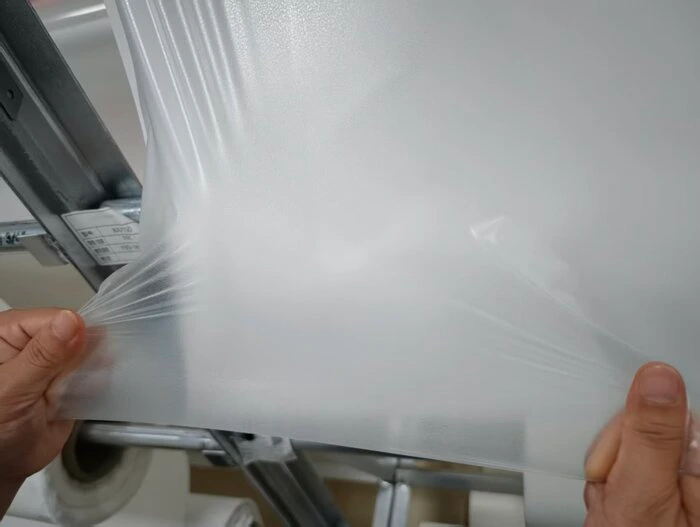

Elastic Hot Melt Adhesive Film is a flexible, solvent-free thermoplastic bonding sheet engineered to join stretchable fabrics and flexible substrates. Activated under controlled heat and pressure, it forms durable, washable bonds while following fabric elongation and maintaining original rebound and soft touch.
How to Select Elastic Hot Melt Adhesive Film for Stretch Fabrics
Select the suitable adhesive film based on elasticity, softness, washing durability, and fabric processing requirements.
| Manufacturing Requirement | Recommended Adhesive Film | Main Performance Advantage | Typical Application |
|---|---|---|---|
| High Stretch Recovery | Elastic TPU Hot Melt Adhesive Film | High elasticity and recovery performance for stretch fabrics and dynamic movement applications. | Sportswear, compression garments, elastic waistbands |
| Ultra Soft Hand Feel | Soft TPE Adhesive Film | Maintains fabric softness, flexibility, and comfortable touch. | Seamless underwear, intimate apparel |
| Repeated Washing Performance | Wash-Resistant TPU Adhesive Film | Designed for improved bonding durability under repeated laundry conditions. | Sports clothing, outdoor textile products |
| Heat Sensitive Fabrics | Low Temperature Hot Melt Adhesive Film | Lower activation temperature helps protect delicate textile structures. | Fine knitted fabrics, lightweight textiles |
TPU vs. TPE Elastic Hot Melt Adhesive Film: Which to Choose?
Compare physical properties between Thermoplastic Polyurethane (TPU) and Thermoplastic Elastomer (TPE) adhesive films.
| Performance Property | Elastic TPU Film | Elastic TPE Film | Selection Recommendation |
|---|---|---|---|
| Elastic Recovery & Rebound | Excellent (Grade Dependent) | Good (Grade Dependent) | Choose TPU for high-tension activewear and waistbands. |
| Hand Feel & Softness | Soft to Medium Soft | Ultra-Soft & Gel-like | Choose TPE for ultra-delicate seamless underwear. |
| Washing Temp Endurance | Up to 60°C Wash | Up to 40°C Wash | TPU handles industrial laundry conditions better. |
| Transparency & Clarity | High Optical Clarity | Translucent / Milky | Use TPU for sheer or white transparent fabrics. |
Elastic Hot Melt Adhesive Film Applications
Flexible bonding solutions for stretch fabrics, seamless products, footwear, and wearable applications.
Seamless Apparel & Sportswear →
Elastic textile lamination, waistband reinforcement, and soft bonding solutions for yoga wear and athletic leggings.
Footwear & Stretch Textile Components →
Flexible lamination solutions designed for knit shoe uppers and athletic footwear components requiring repeated bending endurance.
Compression Wear & Wearable Products →
Breathable and flexible lamination solutions for compression waist bands, sports medical braces, and smart wearables.
Need a Customized Elastic Bonding Solution for Your Stretch Fabric?
Our technical engineers provide polymer selection and trial sample rolls within 48 hours.
Elastic Hot Melt Adhesive Film Technical Parameters
Typical performance characteristics for textile lamination applications.
| Technical Parameter | Typical Range / Value | Application Benefit |
|---|---|---|
| Base Polymer | 100% Thermoplastic Polyurethane (TPU) / TPE Elastomer | Solvent-free, eco-friendly thermoplastic bonding layer |
| Elastic Recovery Rate | > 90% (Grade Dependent) | Maintains original fabric shape after repeated dynamic stretching |
| Gauge Thickness | 0.05mm – 0.20mm (Custom Gauges Available) | Thin gauges maintain soft hand feel; thick gauges maximize bond strength |
| Melting Range ($T_m$) | 90°C – 135°C | Suitable for flatbed laminators, heat presses, and continuous rollers |
| Activation Temperature | 100°C – 140°C (Platen Temp) | Fast melt activation prevents thermal distortion on delicate fabrics |
| Bonding Pressure | 0.3 – 0.6 MPa (1.5 – 3.0 kg/cm²) | Ensures complete adhesive wetting into textile fibers |
| Activation Time | 8 – 15 Seconds | Optimized cycle time for high-efficiency apparel production lines |
| Laundering Endurance | 40°C – 60°C Wash Cycles (20+ Cycles) | Resists delamination during home laundering and commercial washing |
15 Million m²
Annual Production Capacity
Industrial scale adhesive film production
50+ Grades
Standard Specifications
Multiple formulations for textile bonding
30+ Countries
Global Export Experience
Serving international industrial customers
±0.003 mm
Thickness Monitoring Precision
Online thickness control system
Elastic Hot Melt Adhesive Film for Stretch Fabrics: Complete Selection Guide
Troubleshooting fabric stiffness, edge peeling, and wash delamination on Spandex, Lycra, and nylon blends. Learn how polymer modulus, activation windows, and narrow roll slitting determine seamless apparel longevity.
Related Industrial Application Guides
Stretch Fabric Film Selection Guide
How to eliminate elastic hysteresis, wrinkles, and post-wash peeling on 4-way stretch textiles.
Underwear LaminationHow to Choose TPU Film for Seamless Underwear?
Complete guide on elasticity, soft touch, and heat press temperature selection for intimate apparel.
Waist Belt SolutionElastic Film for Seamless Waist Support Belts
How high-rebound hot melt film enables zero-stitch lumbar support bands and medical braces.
Technical PropertiesKey Properties of Hot Melt Adhesive Films
Complete overview of breathability, washing resistance, elasticity, and melting range parameters.
Frequently Asked Questions About Elastic Hot Melt Adhesive Film
1. What is elastic hot melt adhesive film?
2. Can elastic hot melt adhesive film bond spandex and high-stretch fabrics?
3. What temperature and pressure are required for elastic adhesive film?
4. What is the difference between TPU and TPE elastic adhesive film?
5. Is elastic hot melt adhesive film washable?
6. Can it be used for seamless underwear and stitch-free garments?
7. Will the adhesive film affect natural fabric softness?
8. Can thickness and roll widths be customized?
Need an Elastic Hot Melt Adhesive Film Solution?
Send your fabric information and application requirements. VOMELT can recommend suitable adhesive film grades and provide testing samples before mass production.
