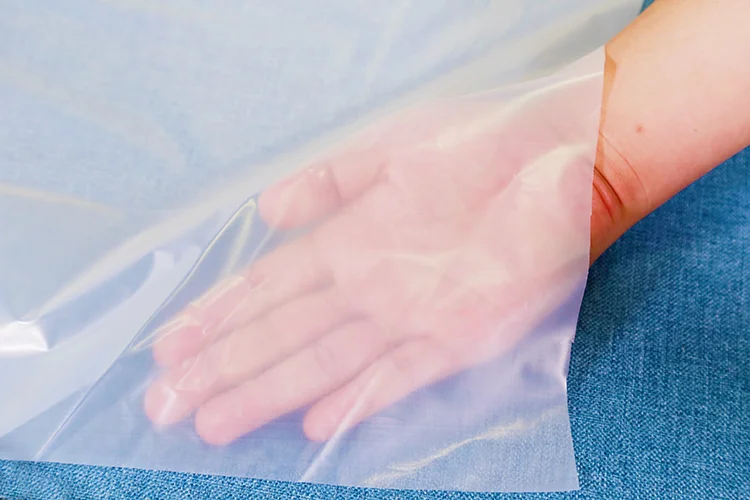

PES Hot-Melt
Adhesive Film
Non-Elastic & Ultra Washable. Engineered with co-polyester resin for superior wash resistance and broad-spectrum material compatibility. The ultimate choice for high-performance bonding.
Factory Direct & R&D
10,000+ Specs Available
Mastering Multi-Material Bonding

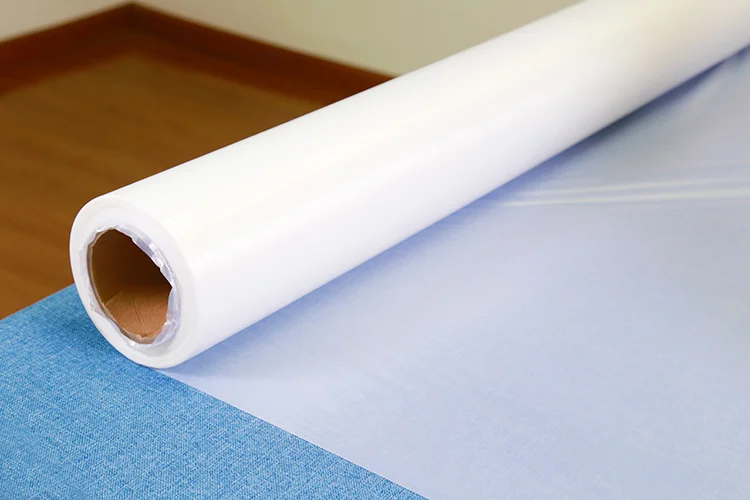

PES (co‑polyester) hot‑melt adhesive film is a non‑elastic, high‑performance thermoplastic bonding film. Unlike elastic TPU/TPE or rigid PA, PES perfectly balances durability, heat resistance, and versatility.

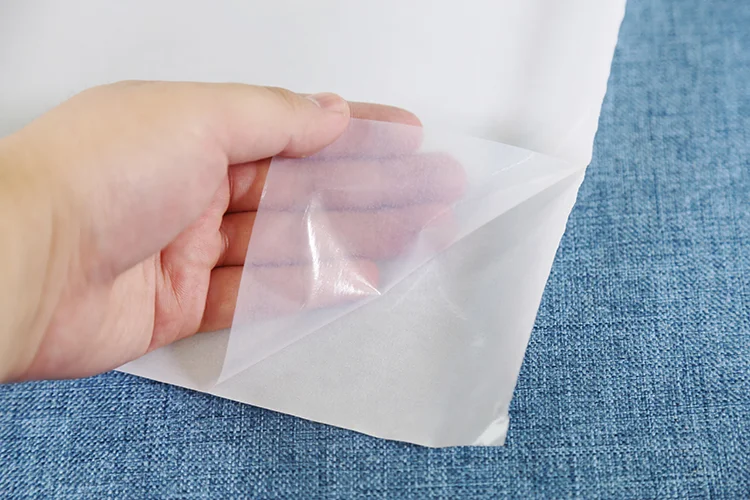

It remains non‑tacky at room temperature and transforms into a powerful double‑sided adhesive when heated. It delivers excellent wash & dry clean resistance, high thermal stability, and strong adhesion to difficult substrates like polyester, metal, and wood.
TPU Film
Medium elasticity, high viscosity
TPE Jelly Film
Ultra soft & breathable
PA Film
Rigid non-elastic, dry clean resistant
PES Film
Industrial multi-material & ultra-washable
Core Advantages
Engineered for uncompromising performance in demanding industrial environments.
Exceptional Wash Resistance
Withstands 20+ industrial washes and 15+ dry clean cycles without degradation. Ideal for high‑end apparel.
Multi‑Material Mastery
Effortlessly bonds polyester fabrics, metal sheets, wood, rubber, EVA, and plastics—a true industrial workhorse.
High Thermal Stability
Resists yellowing and aging at elevated temperatures. Maintains bond integrity in harsh environments.
Dimensionally Stable
Non-elastic formulation with zero stretch or creep. Perfect for structured applications requiring precision.
Eco‑Friendly & Safe
RoHS 2.0 compliant. Solvent‑free, non‑toxic, completely safe for human contact and global export certification.
Complete Model Specification
| Model | Material | Elasticity | Melting Point(℃) | Custom Thickness(mm) | Custom Width(mm) | Roll Length(m) | Lamination Temp(℃) | Pressure(MPa) | Pressing Time(s) | Features |
|---|---|---|---|---|---|---|---|---|---|---|
| TJS125 | Co‑Polyester | Non-Elastic | 115–125 | 0.04–0.10 | 5–1600 | 5–2000 | 130–160 | 0.2 | 10–30 | No release paper, white matte |
| XJS130 | Co‑Polyester | Non-Elastic | 115–125 | 0.05–0.60 | 5–1500 | 5–500 | 130–160 | 0.2 | 10–30 | With release paper, white matte |
| TJS130 | Co‑Polyester | Non-Elastic | 125–130 | 0.05–0.60 | 5–1100 | 5–500 | 130–160 | 0.2 | 10–30 | With release paper, milky white |
Industrial Performance & Advanced Data
Engineered for extreme conditions. Rigorously tested to meet top-tier industrial manufacturing standards.
Broad Material Compatibility
Engineered to bond seamlessly across diverse substrates, providing robust adhesion for complex industrial assemblies.
Polyester & Synthetics
Wood & Paper

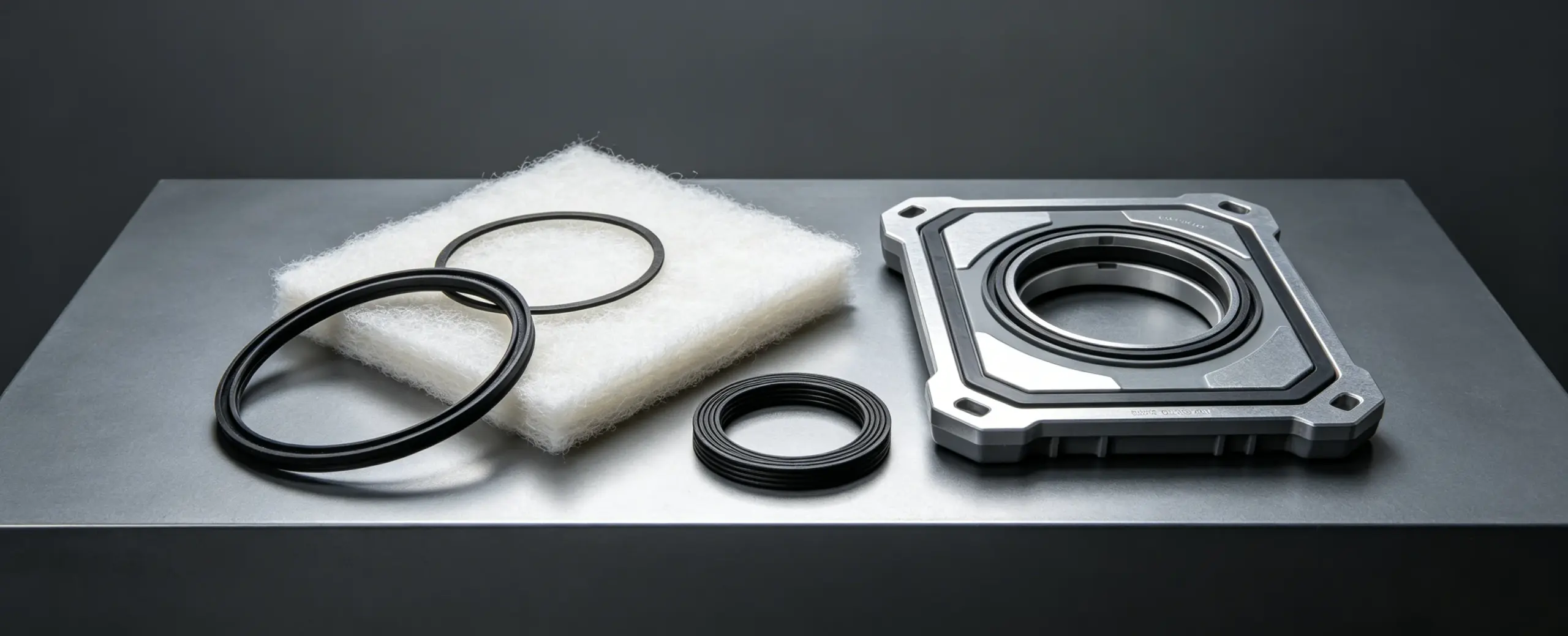

Rubber & Elastomers
EVA & Foam Materials
PET & Polymer Films
Wide Application Industries
Apparel Manufacturing
Collars, cuffs, plackets, polyester garment reinforcement, permanent shaping for woven clothing.
Automotive Interior
Interior fabrics, carpet bonding, headliners, automotive decorative composite materials.

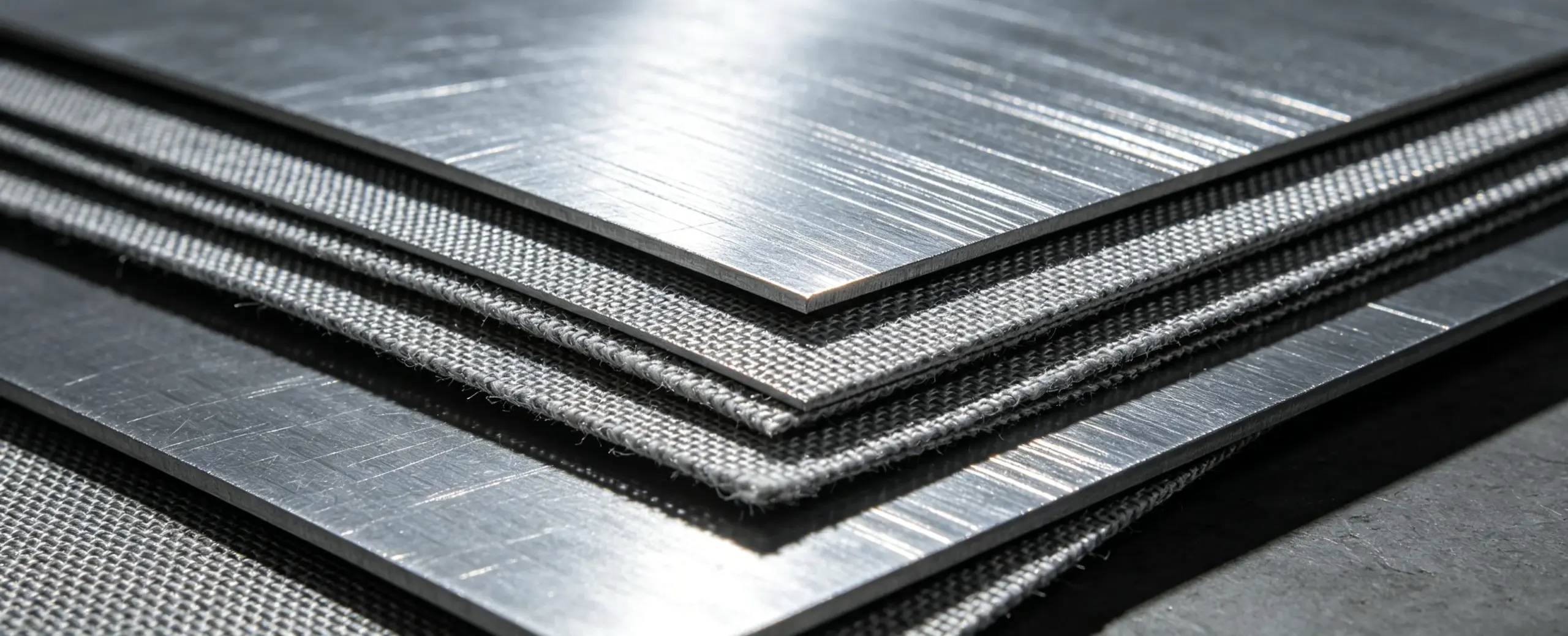

Industrial Lamination
Metal‑fabric laminations, filter materials, sealing gaskets, rigid industrial composite parts.
Home Textiles
Curtains, upholstery, bedding, durable household textile bonding.
Footwear & Luggage
Non‑elastic structural bonding for shoe materials and luggage lining composite.
Packaging
Wood‑fabric composites, paper board lamination, special industrial packaging materials.
Hot-Melt Adhesive Film Performance Matrix
A comprehensive quantitative comparison across four core polymer bases to help you engineer the perfect bonding solution for your specific industrial application.
Precision Bonding Data
| Performance Dimension | PES (Copolyester) |
PA (Copolyamide) |
TPU (Polyurethane) |
TPE (Jelly Film) |
|---|---|---|---|---|
| Washability 60℃ Industrial Wash | ★★★★★ | ★★★☆☆ | ★★★☆☆ | ★★☆☆☆ |
| Dry Cleanability Perchloroethylene | ★★★★☆ | ★★★★★ | ★★☆☆☆ | ★★☆☆☆ |
| Adhesion Strength N/25mm | ≥ 30 | ≥ 35 (Leather Spec) | ≥ 25 | ≥ 15 |
| Heat Resistance Upper Limit Temp | 120℃ |
130℃ |
90℃ |
80℃ |
| Metal/Wood Adhesion | ★★★★★ | ★★☆☆☆ | ★★☆☆☆ | ☆☆☆☆☆ |
| Polyester Fabric Adhesion | ★★★★★ | ★★★☆☆ | ★★★☆☆ | ★★☆☆☆ |
| Elasticity Elongation Rate | None (<5%) | None (<5%) | Medium (300-500%) | High (>800%) |
| Cost Level | Medium | High | Medium | Low-Medium |
Need Expert Guidance?
Our R&D team provides professional back coating, lamination services, and custom formulations tailored to your exact industrial requirements.
Call Us Directly
+86 17712662793
Email Support
vomeltsales@163.com
Headquarters
No. 36 Zhonglu Development Zone,
Pingwang Town, Wujiang District,
Suzhou City, Jiangsu Province
Request a Free Quote
Fill out the details below and our specialists will contact you shortly.
Adhesive Film Selection Guide
Engineered for precision. Find the optimal hot-melt adhesive film formulation for your specific material combinations, backed by our extensive R&D in functional films.
Selection Recommendation by Substrate (English Version)
Global Standard| Substrate A | Substrate B | Recommended Film | Recommended Model | Thickness Suggestion | Special Notes |
|---|---|---|---|---|---|
| Polyester Fabric | Polyester Fabric | PES | TJS125 (Paperless) | 0.04-0.08mm | Standard process |
| Polyester Fabric | Aluminum/Stainless Steel | PES | XJS130 (With Paper) | 0.08-0.15mm | Metal requires degreasing & preheating |
| Polyester Fabric | Wood | PES | TJS130 | 0.10-0.20mm | Wood moisture content <12% |
| Polyester Fabric | EVA/Foam | PES | XJS130 | 0.05-0.10mm | Low pressure, avoid foam compression |
| Polyester Fabric | Leather | PA | PA Special Model | 0.05-0.10mm | Leather requires degreasing |
| Leather | Leather | PA | PA Special Model | 0.08-0.15mm | Top choice for dry cleaning resistance |
| Elastic Fabric | Elastic Fabric | TPU | TPU Series | 0.04-0.08mm | Maintains elasticity |
| Metal | Metal | PES or Structural Glue | XJS130 (Thick) | 0.15-0.30mm | Higher pressure required |
| Nylon Fabric | Nylon Fabric | PA or PES | Determined by testing | 0.05mm | PA offers better initial tack |
Need a Custom Solution?
With 10,000+ specifications available, our engineers can tailor the perfect hot-melt adhesive film for your unique manufacturing process.
Direct Expert Support
- vomeltsales@163.com
- +86 17712662793
-
No. 36 Zhonglu Development Zone, Pingwang Town,
Wujiang District, Suzhou City, Jiangsu Province
Standard Lamination Process
Engineered for precision. Follow these standardized steps to ensure optimal adhesion, durability, and performance across all substrates.
Preparation
Clean and dry surfaces completely. Ensure zero dust, oil, or moisture remains before application.
Layout
Place TJS125 directly. For XJS130/TJS130, position the film side down with the liner facing up.
Heat Press
Apply 130–160℃ uniform heat at 0.2MPa pressure for a precise duration of 10–30 seconds.
Cooling
Allow complete natural cooling to room temperature before carefully peeling the release liner.
Testing
Verify peel strength and structural adhesion quality only after the material is fully stabilized.
Hardware Compatibility
Flatbed Heat Press
Small Batch / Prototyping
Continuous Laminator
Roll-to-Roll Mass Production
Vacuum Thermoforming
Metal & Wood Substrates
Semi-Auto Hot Melt
Compound Processing
Customization Specs
Precision engineering tailored to your specific industrial requirements.
Dimensional Control
- • Thickness: 0.04–0.60mm slitting
- • Width: 5–1600mm narrow strip
Format & Processing
- • Length: 5–2000 meters per roll
- • Deep Processing: Rewinding, sheet cutting

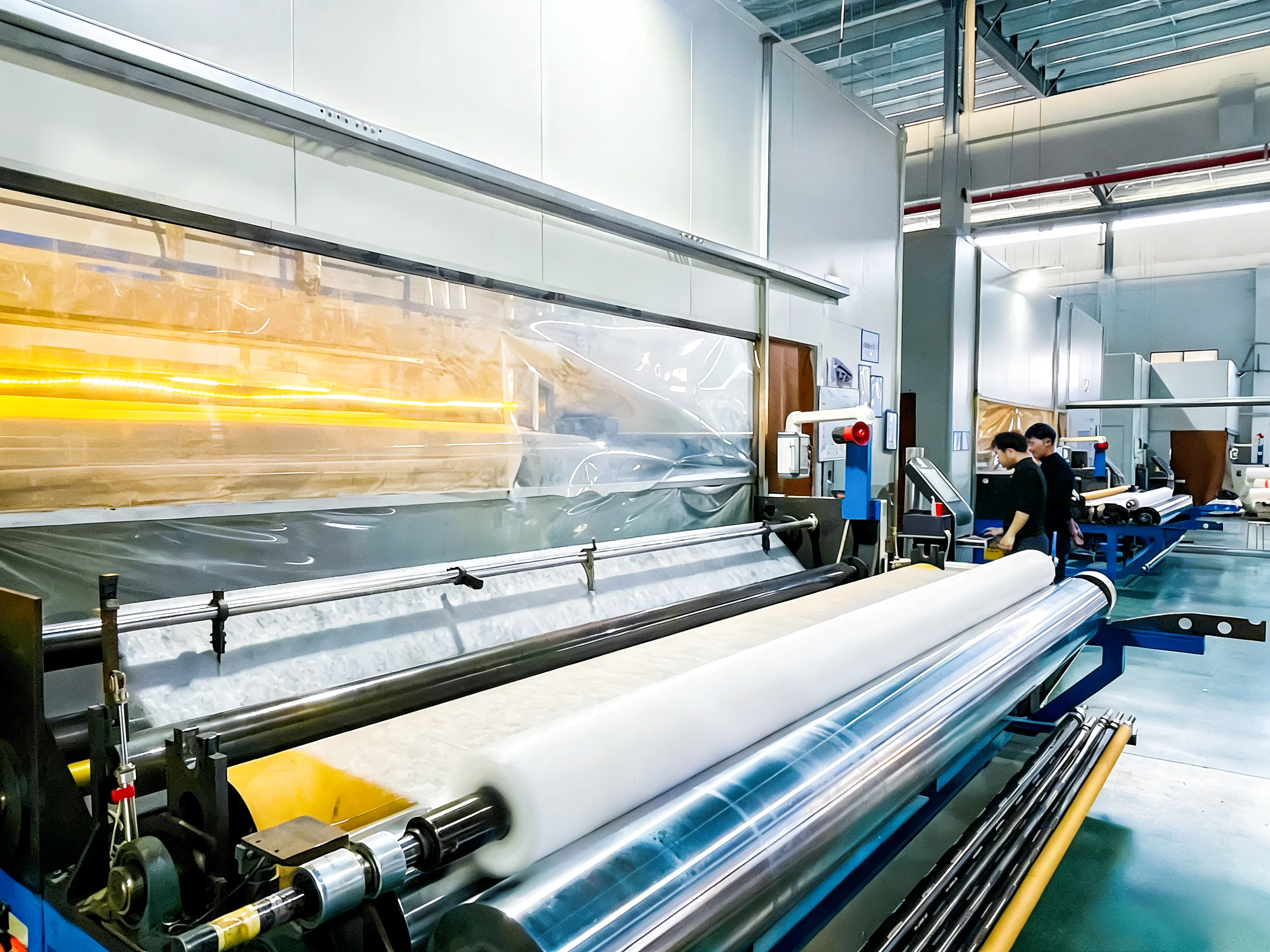

The Science of Lamination Bonding
PES hot melt adhesive film utilizes an advanced copolyester molecular structure. Under constant temperature and pressure, the polyester molecular chains melt rapidly, deeply penetrating fabric micro-gaps, metal textures, and porous material surfaces.
Upon natural cooling, the molecules recrystallize to form robust physical interlocking and chemical composite bonding. With a molecular activity significantly stronger than PA and TPU, it is exceptionally suited for demanding applications involving polyester fabrics and metal substrates.
Defect Causes & Solutions
Identify and resolve common issues during the hot-melt lamination process to maintain optimal production quality.
Poor Bonding
Cause: Insufficient temperature, uneven pressure distribution, or the presence of dust and oil on the material surface.
Edge Warping
Cause: Prematurely peeling off the release paper before the material has completely cooled down.
Material Yellowing
Cause: Operating at excessively high temperatures or maintaining holding pressure for too long.
Internal Bubbles
Cause: Lack of proper preheating or excessive humidity present in the raw materials.
Critical Usage Guidelines
Strictly observe these operational constraints to guarantee the integrity and longevity of the adhesive bond.
Do not tear release paper at high temperatures.
Avoid rapid cold wind cooling after hot pressing.
Prohibit stacking heavy objects to prevent deformation.
Long-term direct sunlight reduces bonding activity.
Not suitable for ultra-smooth PTFE isolation materials.
Encountering Other Technical Challenges?
Have a unique situation or specific requirement? Contact our professional team. We are ready to help you solve complex technical problems and deliver the perfect adhesive solution for your application.
Material Comparison Matrix
Evaluate hrs high-performance hot-melt technologies against conventional alternatives to ensure optimal material selection for your industrial applications.
| Performance Metrics | hrs PES Hot-Melt Recommended | Standard EVA Film | Traditional Liquid Adhesives |
|---|---|---|---|
| Wash & Dry Clean Resistance | Excellent (Up to 90°C) | Poor | Moderate |
| Temperature Tolerance | -30°C to 120°C+ | 0°C to 60°C | Varies significantly |
| Breathability (Mesh Form) | Superior | Poor | None |
| Eco-Friendliness | 100% VOC-Free | VOC-Free | High VOC Emissions |
| Application Efficiency | High (Instant Bonding) | Moderate | Low (Requires Curing) |
| Customization & Specs | 10,000+ Specifications | Standard Only | Limited |
Need a tailored formulation?
Leverage our factory-direct R&D. We provide professional back coating and lamination services for 15+ global industries.
PES Hot Melt Adhesive Film FAQs
Discover why our Polyethersulfone (PES) solutions are the industry standard for demanding industrial composites, offering unparalleled performance across diverse materials and extreme conditions.
Engineered for Extreme Durability
