PO / EAA Hot-Melt
Adhesive Film
Polyolefin / Ethylene Acrylic Acid copolymer engineered for high wash resistance, extreme initial tack, and non-elastic precision.
Product Overview

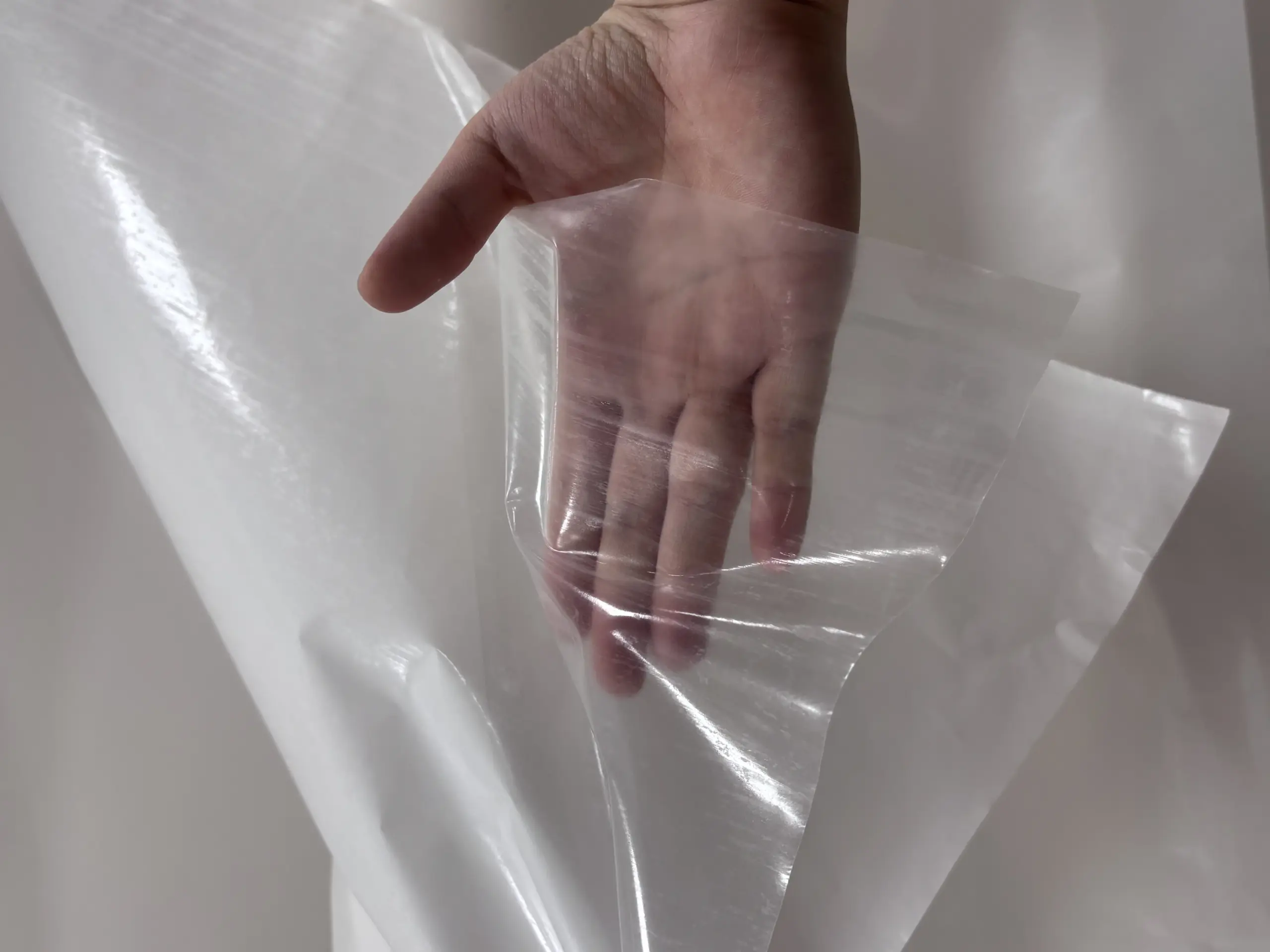

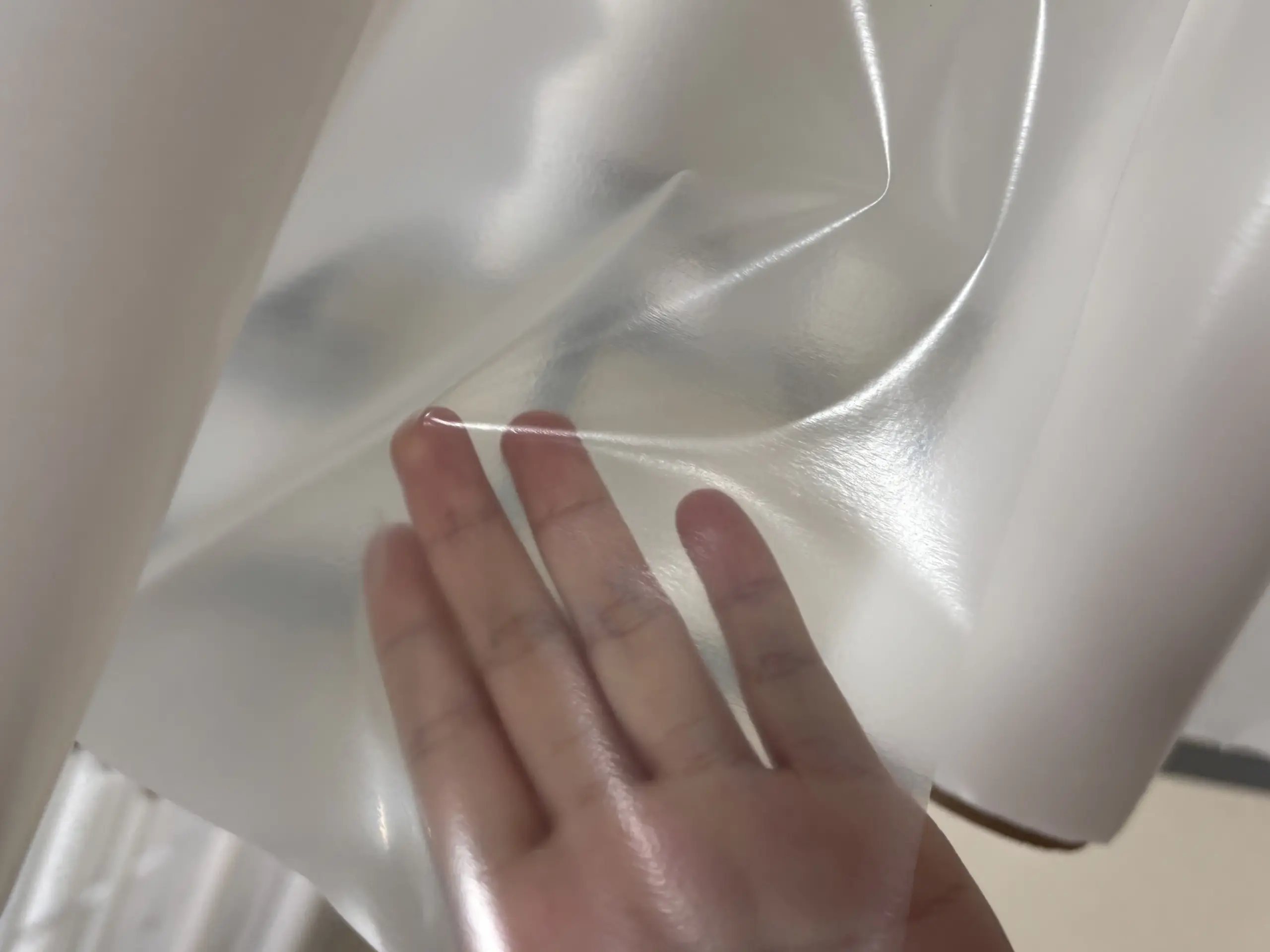

PO (Polyolefin) / EAA (Ethylene Acrylic Acid) hot-melt adhesive film is a non-elastic thermoplastic bonding material. It is developed to deliver outstanding washing durability, strong initial adhesion and universal substrate compatibility.
Manufactured from polyolefin and ethylene acrylic acid copolymer, it creates firm bonding on both polar and non-polar surfaces. It works perfectly on hard-to-bond materials including metal, PE/PP foam and synthetic fabrics.
Differentiation Comparison
Engineered hot-melt adhesive films tailored for specific industrial performance requirements. Compare characteristics to find the perfect formulation for your manufacturing process.
Selection Matrix Summary
| Material Type | Elasticity Profile | Core Advantage | Primary Target Application |
|---|---|---|---|
| TPU | High Elasticity | Flexibility & Resilience | Bags, Luggage, Footwear |

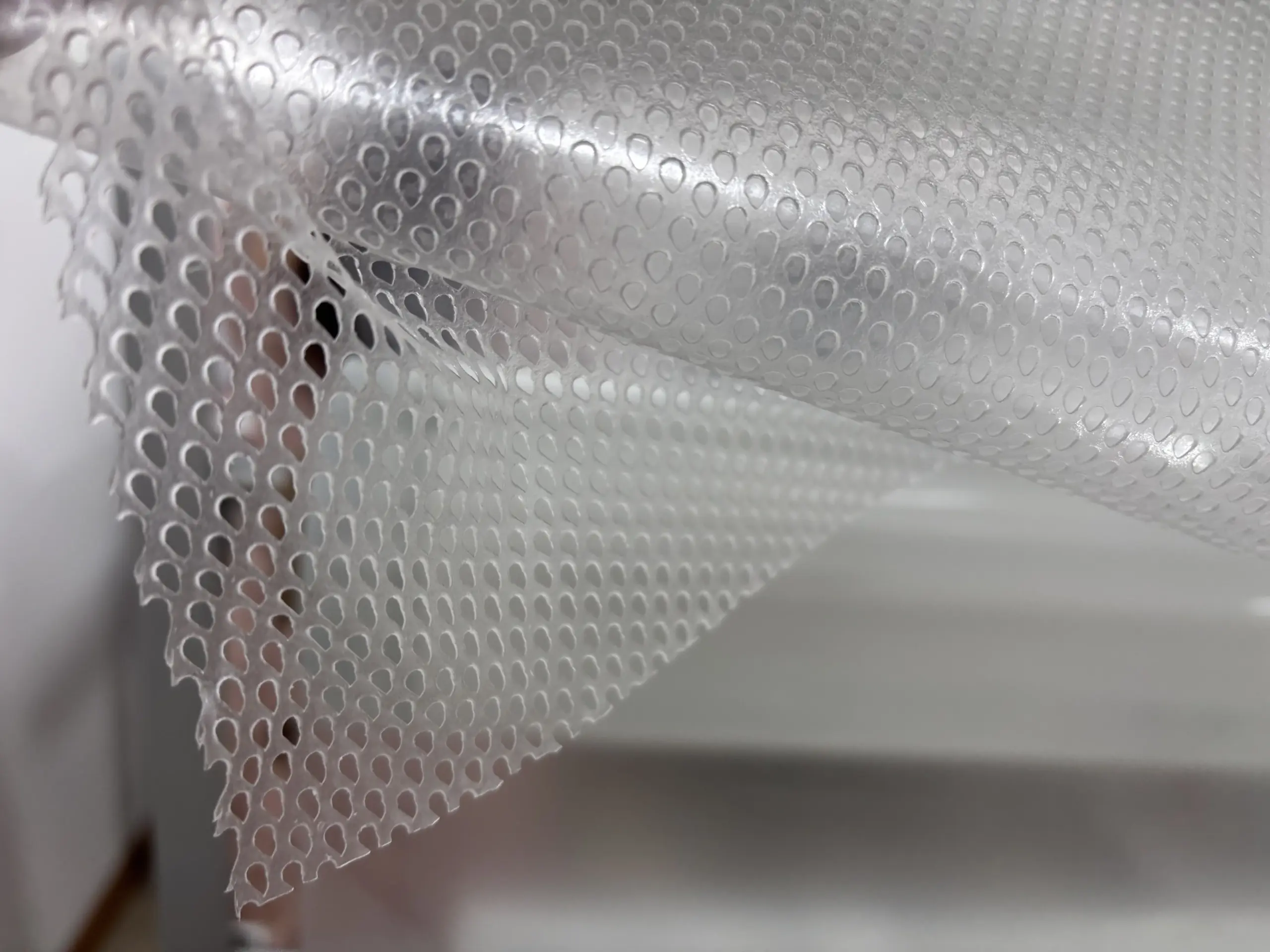

| TPE | Moderate (Soft) | Soft Texture & Drape | Close-fitting Garments |

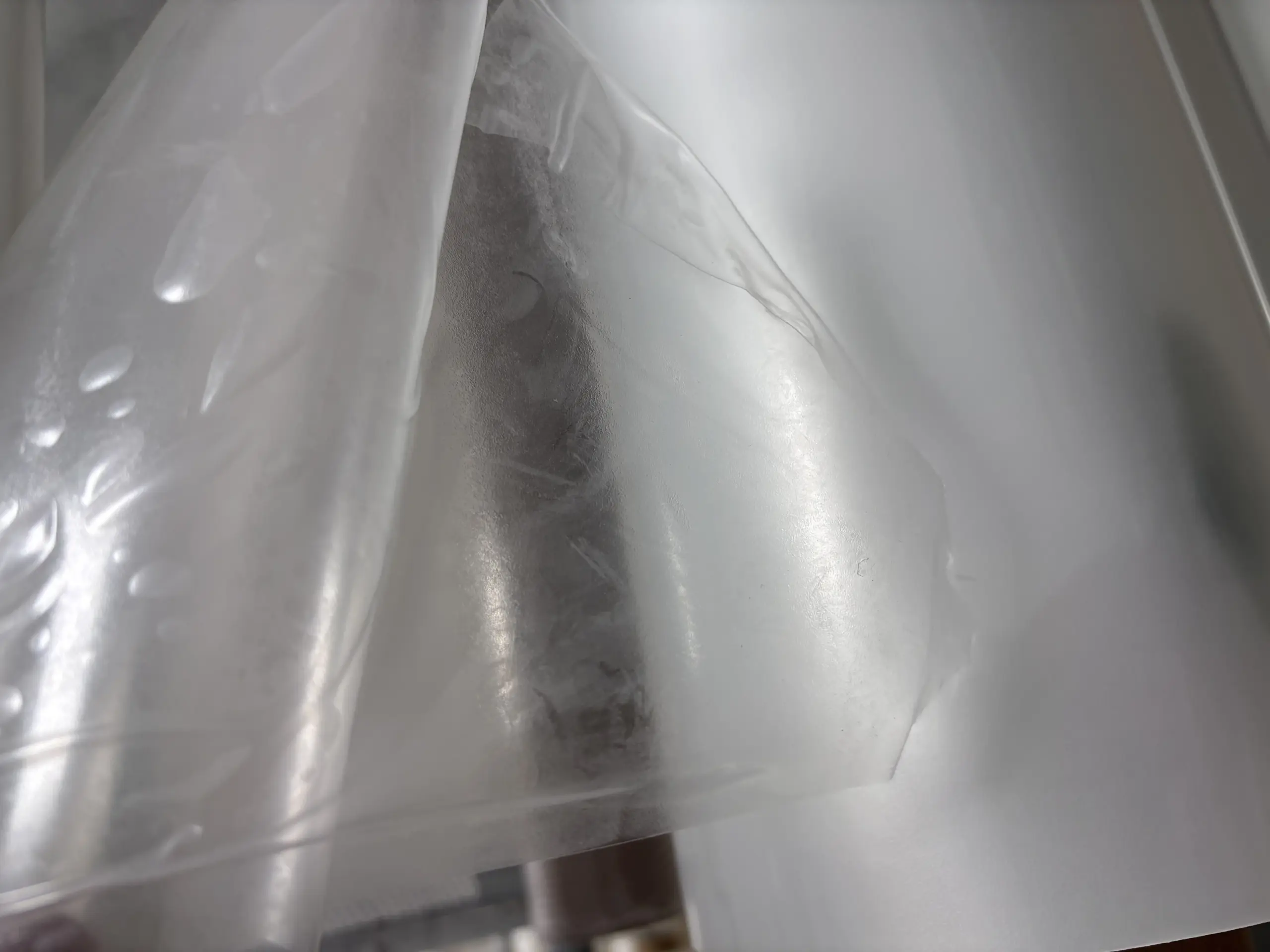

| PA | Rigid | Shape Retention | High-grade Clothing, Collars |
| PES | Low | Ultra-high Wash Resistance | Industrial Standard Textiles |
| PO / EAA | Non-elastic | High Initial Tack & Adhesion | Metal, Foam, Difficult Substrates |
Core Advantages
Engineered to meet the most demanding industrial requirements with precision and reliability.
Wash & Dry Clean Durability
Withstands over 15 cycles of industrial washing and 10+ dry cleaning processes, satisfying durable bonding demands of apparel.
High Initial Adhesion
Solid bonding forms rapidly after cooling, effectively boosting production speed and assembly line efficiency.
Wide Substrate Adaptability
Reliably bonds metal, PE/PP foam, polyester, nylon, leather, paper and wood with versatile application performance.
Non-Elastic & Stable
No stretching or creeping deformation occurs, perfectly matching structural products requiring high precision.
Reprocessable Thermoplastic Property
The film can be remelted under heat, allowing position adjustment and rework during manufacturing procedures, significantly reducing material waste.
Model Specification Table
Comprehensive parameters for our XJO series PO/EAA films.
| Model | Material | Elasticity | Melting Point(℃) | Custom Thickness(mm) | Custom Width(mm) | Roll Length(m) | Lamination Temp(℃) | Pressure(MPa) | Press Time(s) | Product Features |
|---|---|---|---|---|---|---|---|---|---|---|
| XJO115 | PO / EAA | Non-Elastic | 100–115 | 0.05–0.60 | 5–1500 | 5–500 | 125–150 | 0.2 | 10–30 | With release liner, transparent |
| XJO116 | PO / EAA | Non-Elastic | 100–115 | 0.05–0.60 | 5–1500 | 5–500 | 125–150 | 0.2 | 10–30 | Liner-free, transparent |
Industrial Performance & Test Data
Technical Specifications
Comprehensive performance parameters and durability test data.
| Test Item | Technical Parameter & Performance |
|---|---|
| Peel Strength | ≥30 N/25mm, ASTM D1876 Standard |
| Water Wash Resistance | Over 15 cycles at 60℃ |
|
After 0 Cycles (Original)
|
32.8 N/25mm
100%
|
|
After 5 Cycles
|
31.5 N/25mm
96%
|
|
After 10 Cycles
|
29.2 N/25mm
89%
|
|
After 15 Cycles
|
26.4 N/25mm
80%
|
|
After 20 Cycles
|
22.1 N/25mm
67%
|
| Dry Clean Resistance | Over 10 cycles with perchloroethylene |
| Solvent Resistance | Resistant to oil, grease, weak acid and weak alkali |
| Heat Shrinkage Rate | ≤1.2% under 140℃ heating |
| Melt Flow Index | 18 g/10min (125℃/2.16kg) |
| Hardness Grade | 38–42 Shore D |
| Operating Temperature Range | -15℃ ~ 105℃ |
| Certification | SGS RoHS 2.0 Compliance |
Compatible Materials & Applications
Engineered for versatility. Our industrial hot-melt adhesive films provide exceptional bonding strength across a wide spectrum of substrates and industries.
Compatible Bonding Materials
Foams & Sponges
PU foam, EVA foam, and various types of sponge materials.
Fabrics & Textiles
Polyester, nylon, cotton woven fabrics, and non-woven fabrics.
Paper & Packaging
Standard paper, cardstock, and corrugated packaging cardboard.
Plastics
PVC, ABS, and standard engineering plastics.
Metals
Thin aluminum sheets and lightweight metal fittings.
Main Application Areas
Footwear Industry
Upper lamination, insole composite, and foam pad bonding for enhanced durability and comfort.
Packaging Industry
Carton sealing, label lamination, and hardcover book casing for premium presentation and structural integrity.
Automotive Interiors
Carpet lamination, interior parts assembly, and thermal foam lamination meeting strict automotive standards.
Textile Processing
Apparel interlining, quilting composites, and filter cloth bonding ensuring breathability and washability.
Building Insulation
Insulation boards and soundproofing material composites for modern, energy-efficient construction.
Apparel Industry
Provides reliable and efficient bonding for a wide variety of everyday garments.
Need a Custom Bonding Solution?
With 10,000+ specifications available, hrs provides factory-direct R&D driven solutions tailored to your industry. Contact us for professional back coating and lamination services.
Request a Sample
Fill out the form below and our technical experts will recommend the best adhesive film for your application.
In-depth Selection Guide
Navigate our material matrix to find the perfect bonding solution for your specific substrate.
| Performance Dimension | PO/EAA | EVA | TPU | PA | PES |
|---|---|---|---|---|---|
| Metal Adhesion Capacity | ★★★★★ | ★★☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| PE/PP Non-Polar Foam | ★★★★★ | ★☆☆☆☆ | ★★☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ |
| Max Heat Resistance | 105°C | 80°C | 90°C | 120°C | 120°C |
Material Compatibility Matrix
Cross-reference your substrates to identify the optimal hot-melt adhesive film model, recommended thickness, and critical processing parameters for maximum bond strength.
| Substrate A | Substrate B | Core Requirement | Recommended Model | Thickness Suggestion | Notes |
|---|---|---|---|---|---|
| PE Foam | PE Foam | Anti-collapse & washable | XJO115 | 0.10-0.20 mm | Pressure below 0.15MPa to avoid foam compression |
| Aluminum Plate | Polyester Fabric | High peel strength & wash durability | XJO116 | 0.08-0.15 mm | Degrease and preheat aluminum to 80℃ |
| PP Honeycomb Board | Non-woven Fabric | Low VOC automotive standard | XJO115 | 0.12-0.20 mm | Flame or corona treatment on PP surface |
| Galvanized Steel | EPDM Foam | Anti-humid aging performance | XJO116 | 0.15-0.25 mm | Polishing or phosphating treatment on steel surface |
| Nylon Fabric | PE Film | Dry clean endurance | XJO115 | 0.05-0.10 mm | Preheat to remove moisture absorbed by nylon |
| Genuine Leather | Metal Fastener | High tack & no glue overflow | XJO116 | 0.08 mm | Polish leather backside for better adhesion |
| Cardboard | Aluminum Foil | Solvent-free food grade safety | XJO115 | 0.05 mm | Uniform pressure to prevent aluminum foil wrinkling |
Quantitative Performance Data & Long-Term Reliability Verification
Rigorous laboratory testing ensuring our hot-melt adhesive solutions meet the highest industrial standards for durability, aging, and chemical resistance.
Peel Strength Attenuation after Repeated Washing
Test Conditions
- Film: XJO115, 0.10mm thickness
- Substrate: Degreased 6061 aluminum plate + 200g/m² polyester fabric
- Lamination: 135℃ / 0.2MPa / 20s
- Washing Standard: 60℃ industrial washer, 45min per cycle
- Test Criterion: ASTM D1876 T-type peeling test
| Washing Cycles | Peel Strength (N/25mm) | Strength Retention Rate | Failure Mode |
|---|---|---|---|
| 0 (Original) | 32.8 | 100% | Cohesive fracture inside adhesive layer |
| 5 | 31.5 | 96% | Cohesive failure |
| 10 | 29.2 | 89% | Mixed failure state |
| 15 | 26.4 | 80% | Slight interface separation |
| 20 | 22.1 | 67% | Dominant interface peeling |
| 30 | 16.5 | 50% | Large-area delamination, not applicable |
Conclusion: PO/EAA maintains strength above 26 N/25mm after 15 industrial washing cycles, meeting durable standard of apparel and footwear. Performance declines obviously beyond 20 cycles, choose PES for higher wash resistance demand.
High Temperature & High Humidity Aging Test
Test Condition: 70℃, 95% relative humidity, XJO116 bonded PE foam & aluminum plate
| Aging Time (h) | Peel Strength (N/25mm) | Strength Retention Rate | Adhesive Layer Status |
|---|---|---|---|
| 0 | 28.5 | 100% | Flexible and tough |
| 100 | 27.2 | 95% | Slightly hardened |
| 200 | 25.1 | 88% | Moderate hardening, still peelable |
| 500 | 20.3 | 71% | Brittle texture, no edge peeling |
Conclusion: Retain 71% original strength after 500-hour humid aging, far superior to EVA material. Suitable for humid working environment such as automotive interior and outdoor supplies.
Chemical & Solvent Resistance Test
Test Method: Room temperature immersion and wiping test, strength retention tested on aluminum-polyester composite sample
| Chemical Agent | Contact Condition | Strength Retention Rate | Surface Phenomenon |
|---|---|---|---|
| Tap Water | 24-hour immersion | 99% | No abnormal change |
| 70% Ethanol | 1-hour immersion | 94% | Minor swelling, recover after drying |
| Gasoline | 1-hour immersion | 82% | Obvious swelling, strength reduction |
| Engine Oil | 24-hour immersion | 88% | Edge softening, stable main strength |
| Ethyl Acetate | 10-minute immersion | 45% | Severe swelling, avoid long contact |
| 5% Acetic Acid | 24-hour immersion | 91% | No corrosion mark |
| 5% Sodium Hydroxide | 24-hour immersion | 87% | Slight surface whitening |
Conclusion: Excellent resistance against oil, weak acid and alkali, poor tolerance to strong ester and ketone organic solvents.
Low Temperature Bending & Impact Resistance
Test Method: 200×50mm PE foam composite frozen for 24 hours, bend 180° around 30mm diameter rod
| Test Temperature | Bending Performance | Post-bending Strength Retention |
|---|---|---|
| 0°C | Crack-free surface | 96% |
| -10°C | Tiny micro cracks, no delamination | 85% |
| -15°C | Mild cracks, partial interface separation | 68% |
| -20°C | Obvious brittle fracture, partial peeling | 42% |
Conclusion: Stable application above -10°C, brittle failure risk below -15°C. Better cold resistance than EVA, inferior to low-temperature resistant TPU film.
Proven Industrial Applications
Real-world engineering solutions demonstrating our functional films' performance across demanding manufacturing environments.

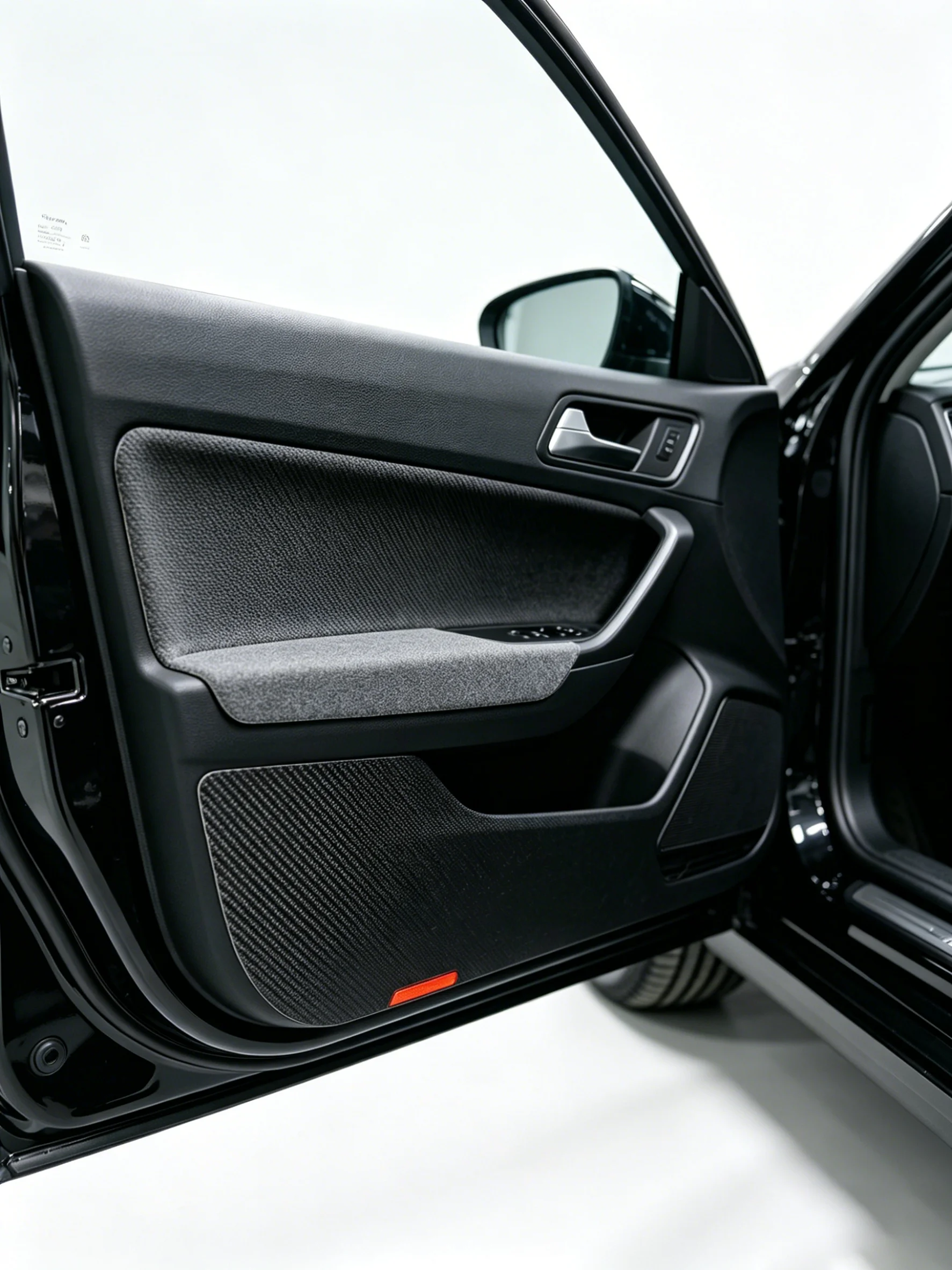

Car Door Sound Absorbing Cotton Composite
Outdoor Waterproof Backpack Back Panel

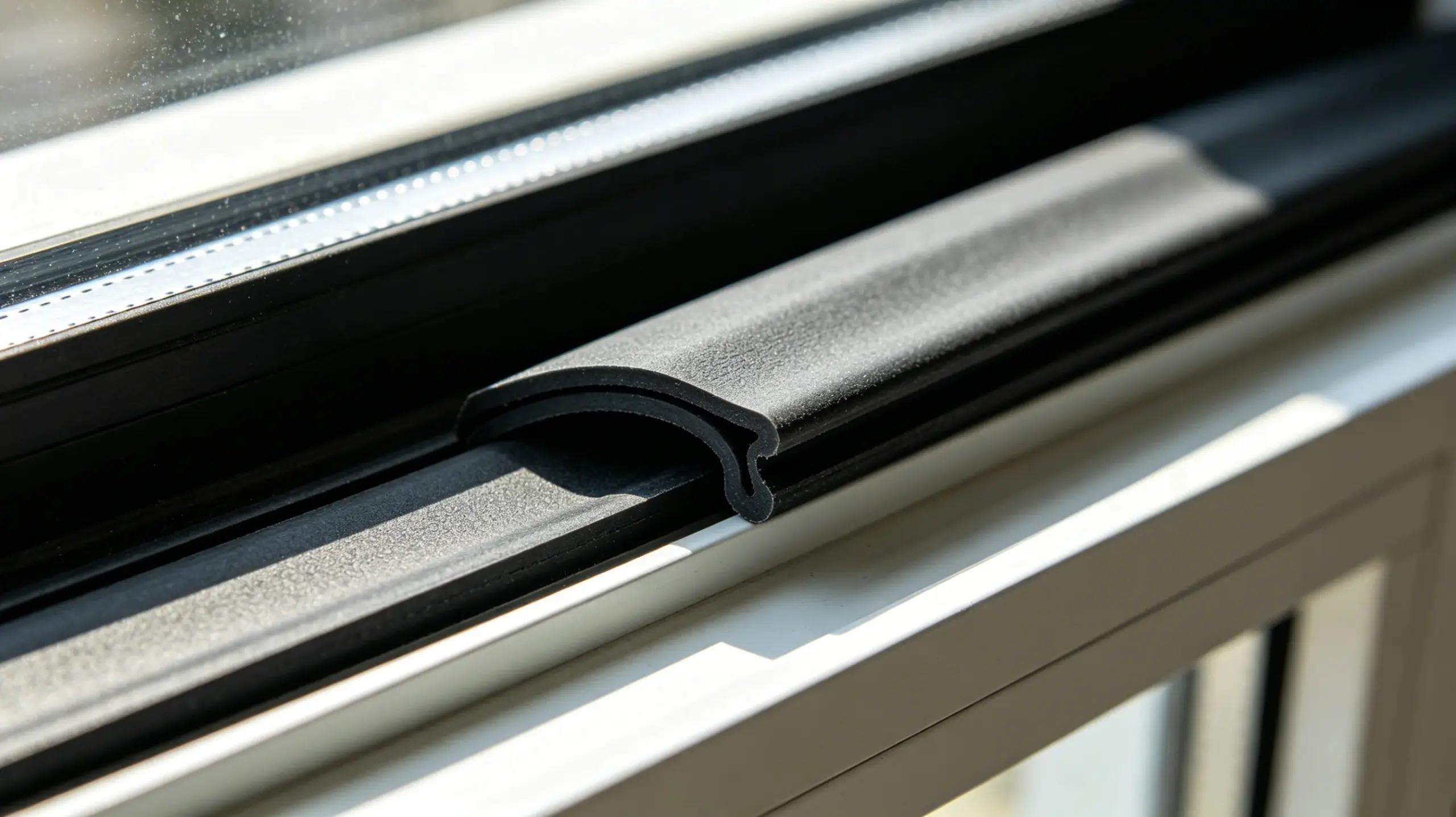

Aluminum Alloy Door & Window Sealing Strip

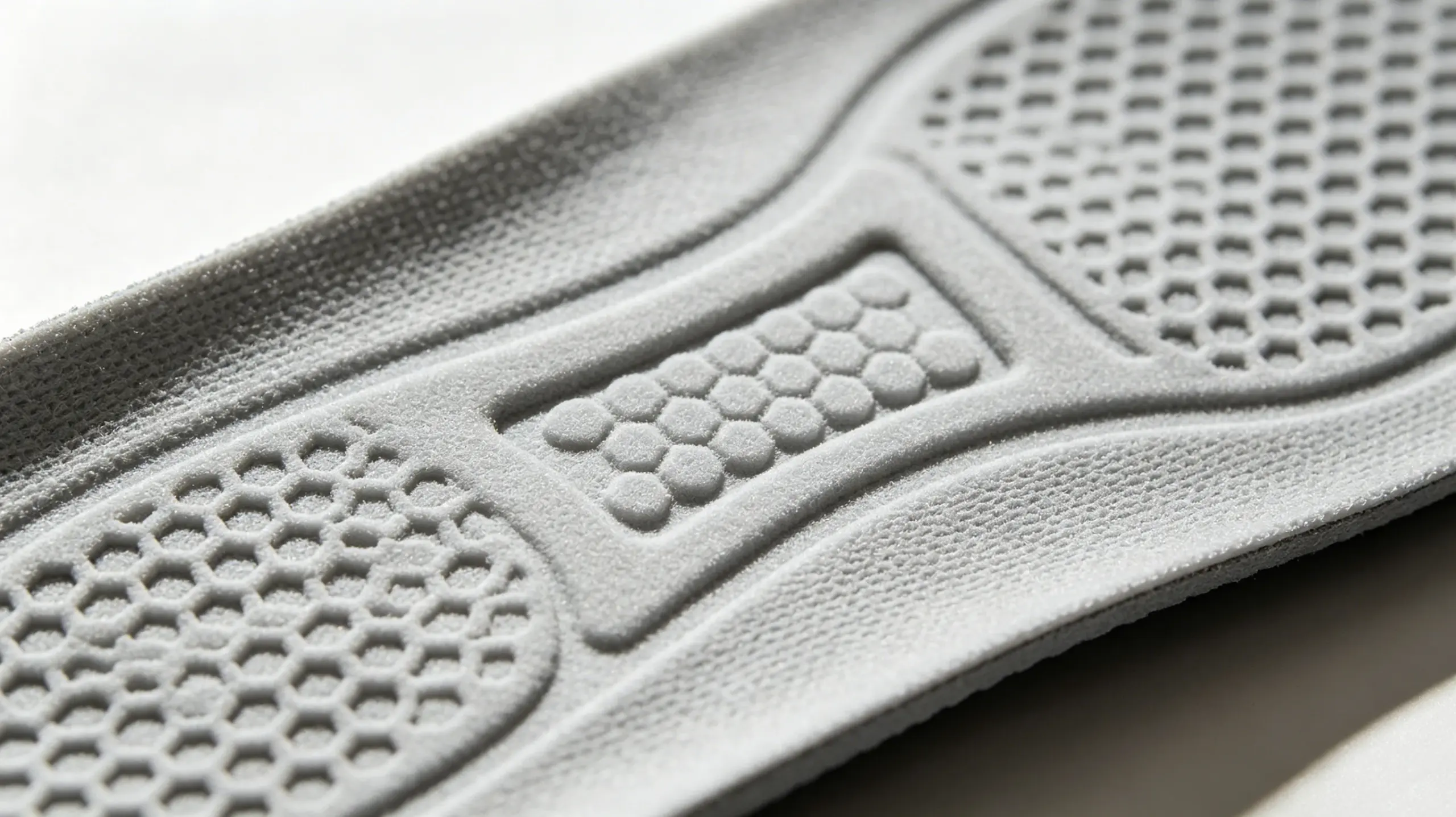

Medical Rehabilitation Shoe Insole
Need a custom bonding solution?
Our R&D team is ready to analyze your specific requirements and provide sample testing. Contact us at vomeltsales@163.com or +86 17712662793.
Standard Lamination Process
Follow these steps to ensure optimal bonding strength and material performance.
Optimal Parameters
Preparation
Clean and dry bonding surfaces thoroughly. Ensure no dust, oil, or moisture remains on substrates like metal or foam.
Film Placement
For XJO115, arrange release liner upward. For XJO116, clamp directly between the two substrates.
Hot Pressing
Apply heat at 125–150℃ with 0.2MPa pressure for 10–30 seconds. Adjust based on substrate thickness and heat conductivity.
Cooling & Inspection
Remove liner only after complete cooling. Conduct peel strength verification to ensure quality control.
