High Elastic TPE
Hot Melt Adhesive Film
Breathable, ultra-soft, and skin-friendly. The ultimate customized bonding solution designed specifically for premium seamless intimate apparel, yoga activewear, and medical textiles.
Redefining Seamless Comfort
Different from rigid industrial-grade TPU hot melt film, our jelly TPE adhesive film delivers a silky hand feel, natural elasticity, and unique breathable textures. It remains non-tacky at room temperature and becomes a powerful double-sided adhesive under specific high-temperature lamination.
Manufactured with pure TPE raw particles without any filler powder, the film ensures incredibly stable bonding strength and excellent skin-friendliness.
-

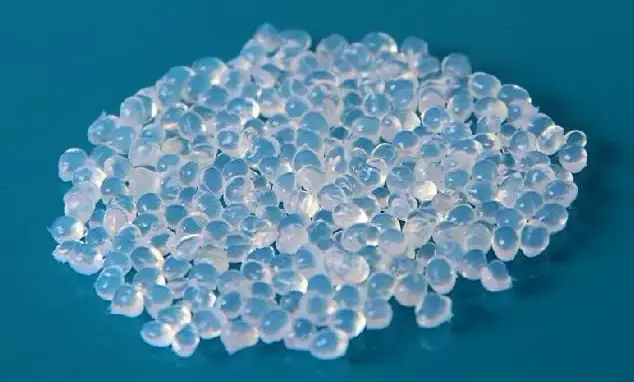

Pure TPE Material
Zero filler powder, ensuring long-lasting bonding and absolute skin safety for intimate wear.
-
Custom Embossed Patterns
Various textures available to meet strict breathability and structural requirements.
Core Product Advantages
Engineered for ultimate performance, comfort, and durability in premium textiles.
Superior Elasticity & Recovery
With an elongation rate up to 520%, the film provides consistent stretching without permanent deformation. Fits human body movements perfectly without tight constraints.
Multi-Pattern Breathable
Equipped with round hole, soccer grid, water ripple, and rhombus textures. The porous structure accelerates air circulation, effectively solving sweat accumulation.
Skin-Friendly & Eco-Safe
Compliant with RoHS 2.0 and REACH environmental standards. Zero halogen, no heavy metals, no smell. Safe for sensitive skin, pregnant women, and infants.
Invisible & Smooth Bonding
Transparent matte jelly texture eliminates shiny edges after lamination. Replace traditional stitching to achieve seamless invisible bonding.
Excellent Wash Resistance
Stable adhesive performance after repeated water washing (≥500 Times). The adhesive layer will not peel off, harden, or turn white under conventional washing conditions, maintaining the long-term service life of finished textiles.
Technical Specifications
Comprehensive physical parameters and model data for precise manufacturing control.
Universal Physical Parameters
| Material | Pure TPE Thermoplastic Elastomer |
| Appearance | Transparent Jelly Texture, Multiple Patterns |
| Release Liner | PET Release Film |
| Melting Temperature | 115℃ - 130℃ |
| Lamination Temperature | 165℃ - 185℃ |
| Lamination Pressure | 0.2 - 0.4 MPa |
| Lamination Time | 15 - 30 Seconds |
| Peel Strength | ≥24 N/25mm |
| Elongation at Break | 380% - 520% |
| Temperature Resistance | -22℃ ~ 95℃ |
| Hardness (Shore A) | 28° - 42° (Ultra Soft) |
| Water Wash Grade | ≥8 Times Repeated Washing |
| Yellowing Resistance | Level 4 (Anti-Yellowing) |
Complete Model Specification Table
| Model | Pattern | Thickness(mm) | Weight(g/㎡) | Width(mm) | Feature |
|---|---|---|---|---|---|
| SJE132 | Smooth Flat | 0.05-0.80 | 45-720 | 5-1560 | Non-breathable, High elasticity |
| ZPSKE40 | Regular Round Hole | 0.15 | 100 | 5-1540 | Thin & Breathable |
| ZPSKE24 | Regular Round Hole | 0.15/0.30 | 115/200 | 5-1540 | Medium thickness, Tough |
| SFE30 | Small Soccer Grid | 0.25 | 75 | 5-1540 | Soft for Lingerie |
| SFE30H | Small Soccer Grid | 0.25 | 75 | 5-1540 | High Viscosity & Elastic |
| BFE150 | Large Soccer Grid | 0.25 | 72 | 5-1540 | Lightweight & Invisible |
| DFE150 | Large Soccer Grid | 0.50 | 200 | 5-1540 | Thickened Support |
| DLE150-20C | Water Ripple | 0.20 | 90 | 5-1540 | Soft Resilience |
| DLE150-50C | Rhombus | 0.50 | 200 | 5-1540 | Shaping & Load-bearing |
| DTE24 | Wrinkle Texture | 1.15 | 420 | 5-600 | Ultra-thick & Strong Adhesion |
Custom patterns and sizes are available for personalized textile production. Contact us for details.
Compatible Materials & Applications
Suitable Bonding Fabrics
Highly compatible with elastic knitted fabric, nylon, polyester, and spandex blended fabrics. Perfect for seamless underwear textiles, stretch sports fabrics, non-woven fabrics, and elastic mesh cloths.
Application Industries
-
Intimate Apparel: Seamless bra, underwear, elastic waistband
-
Active Wear: Yoga pants, fitness tight clothes, stretch sportswear
-
Maternity & Baby: Skin-friendly elastic textile
-
Medical Supplies: Elastic protective gear, rehabilitation bandages
Standard Lamination Process
Critical Note: TPE jelly film is extremely sensitive to heating parameters. Strictly follow the process below to avoid poor bonding or glue carbonization.
Pre-preparation
Keep fabric dry and dust-free; store the film at room temperature for 12 hours before use.
First Lamination
Set temperature 165-185℃, pressure 0.2-0.4MPa, time 15-30s.
Cooling Treatment
Cool naturally to room temperature (do not tear PET film while hot).
Secondary Bonding & QA
Peel off the release liner, laminate with the second fabric, and test peeling strength after complete cooling.
Technical Guidelines & Services
Comprehensive specifications, processing standards, and customized solutions for your production needs.
Standard Lamination Process
This TPE jelly film is sensitive to heating parameters. Strictly follow the process to avoid poor bonding.
- 1. Pre-preparation: Keep fabric dry and dust-free; store the film at room temperature for 12 hours before use.
- 2. First Lamination: Set temperature 165-185℃, pressure 0.2-0.4MPa, time 15-30s.
- 3. Cooling Treatment: Cool naturally to room temperature (do not tear PET film while hot).
- 4. Secondary Bonding: Peel off the release liner and laminate with the second fabric.
- 5. Quality Inspection: Test peeling strength after complete cooling.
Customization Service
We support personalized deep customization for high-end seamless apparel manufacturers:
- • Size Customization: Width 5-1560mm, length 0.1-100m per roll
- • Pattern Customization: Custom special patterns with mould cost $1000 per set
- • Processing Service: Slitting, rewinding and sheet cutting
- • OEM Service: Custom outer packaging and brand labels
Storage & Packaging
- Storage Requirements Seal and store in dry, cool and dark environment. Avoid heavy stacking and direct ultraviolet radiation. The recommended storage humidity is 40%-65%.
-
Shelf Life
Unopened: 18 months under standard storage conditions Opened: Use up within 2 months with sealed preservation
- Packing Method 76mm paper tube core + PE bubble film + kraft woven bag. Custom carton packaging is acceptable. All products are moisture-proof and crash-proof during transportation.
Shipping & MOQ
- • MOQ: 50 Yards
- • Daily Output: 20,000 Meters
- • Lead Time: 3-10 working days for stock goods; 7-15 days for customized orders
Frequently Asked Questions
Expert answers for TPE Apparel Film selection and processing.
What is the difference between TPE jelly film and TPU hot melt film?
Which model is best for seamless underwear?
Why does TPE film sometimes have weak bonding force?
Can I get free samples for testing?
Is this TPE film thermoplastic? Can it be reheated?
Get Free Samples & Technical Support
Still confused about model selection? We provide targeted sample kits for lingerie, activewear, and medical textile industries. Our professional technical team offers one-to-one parameter debugging guidance.
