TPU Hot Melt
Adhesive Film
Dedicated for Garments | Seamless Bonding | Highly Elastic | Wash-Resistant
- Seamless & Stitch-Free Manufacturing
- High Elasticity Without Hardening
- Wash-Resistant, Zero Degumming
Seamless Finish
Perfect for intimate wear
Revolutionizing Garment Manufacturing
TPU Hot Melt Adhesive Film is a thermoplastic polyurethane bonding film specifically developed for seamless garment technology, replacing traditional needle and thread sewing. Featuring high transparency, exceptional rebound elasticity, and stable wash resistance, it completes fabric lamination through heat and pressure—no liquid glue or stitching required. It thoroughly solves industry pain points such as stiff seams, skin irritation, edge bulging, water leakage through needle holes, and easy degumming. It is the ideal composite material for high-end seamless apparel and functional activewear.
Core Product Advantages
Engineered for performance, durability, and comfort.

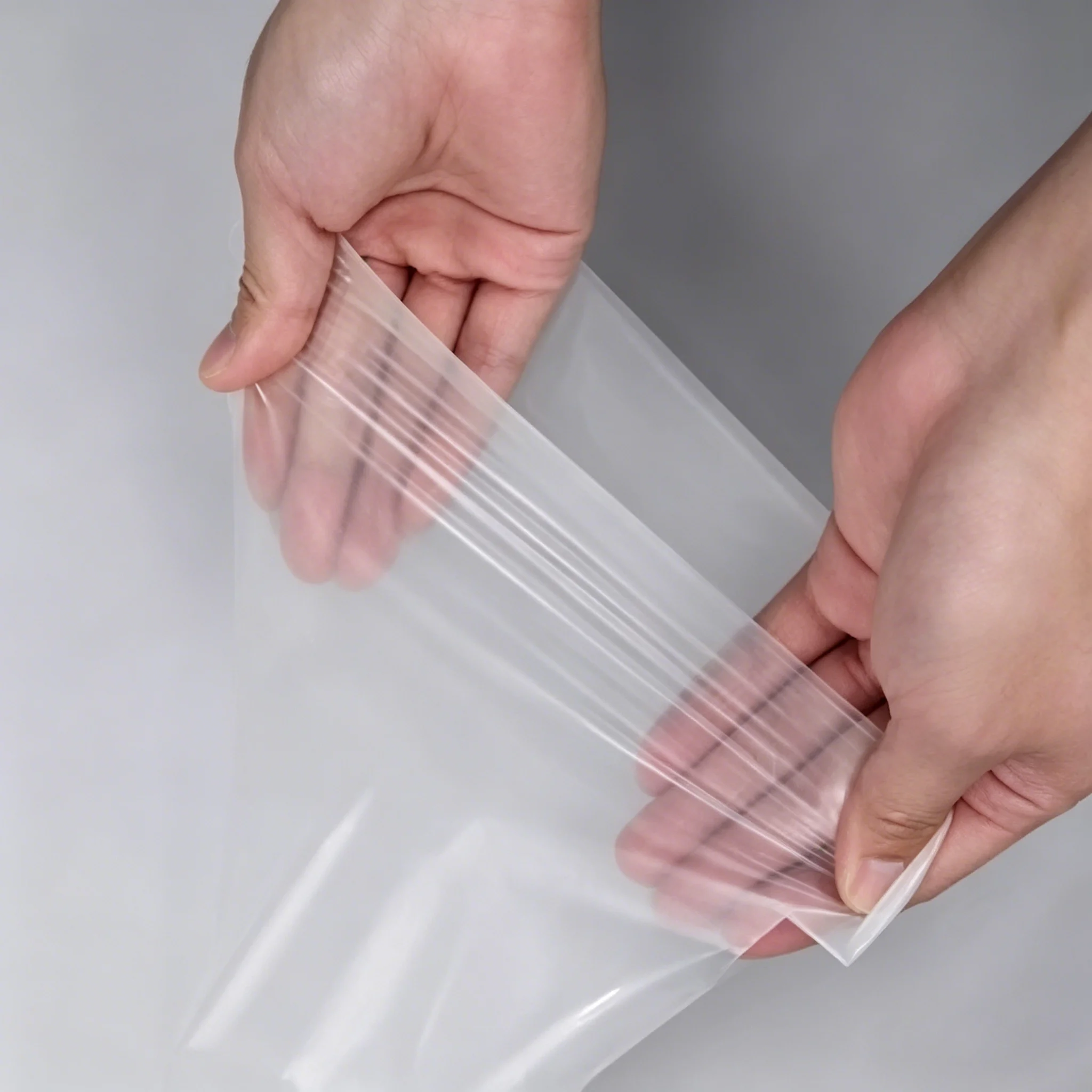

1. High Elasticity & Stretch
Manufactured with imported TPU particles, offering superb stretch and rebound. It syncs perfectly with fabric movement without cracking or degumming, ideal for spandex and stretch knits.
2. Repeated Wash Resistance
Advanced wash-resistant formula withstands multiple industrial and home machine washes. Tolerates high-temperature soaking without losing bonding strength or peeling over time.

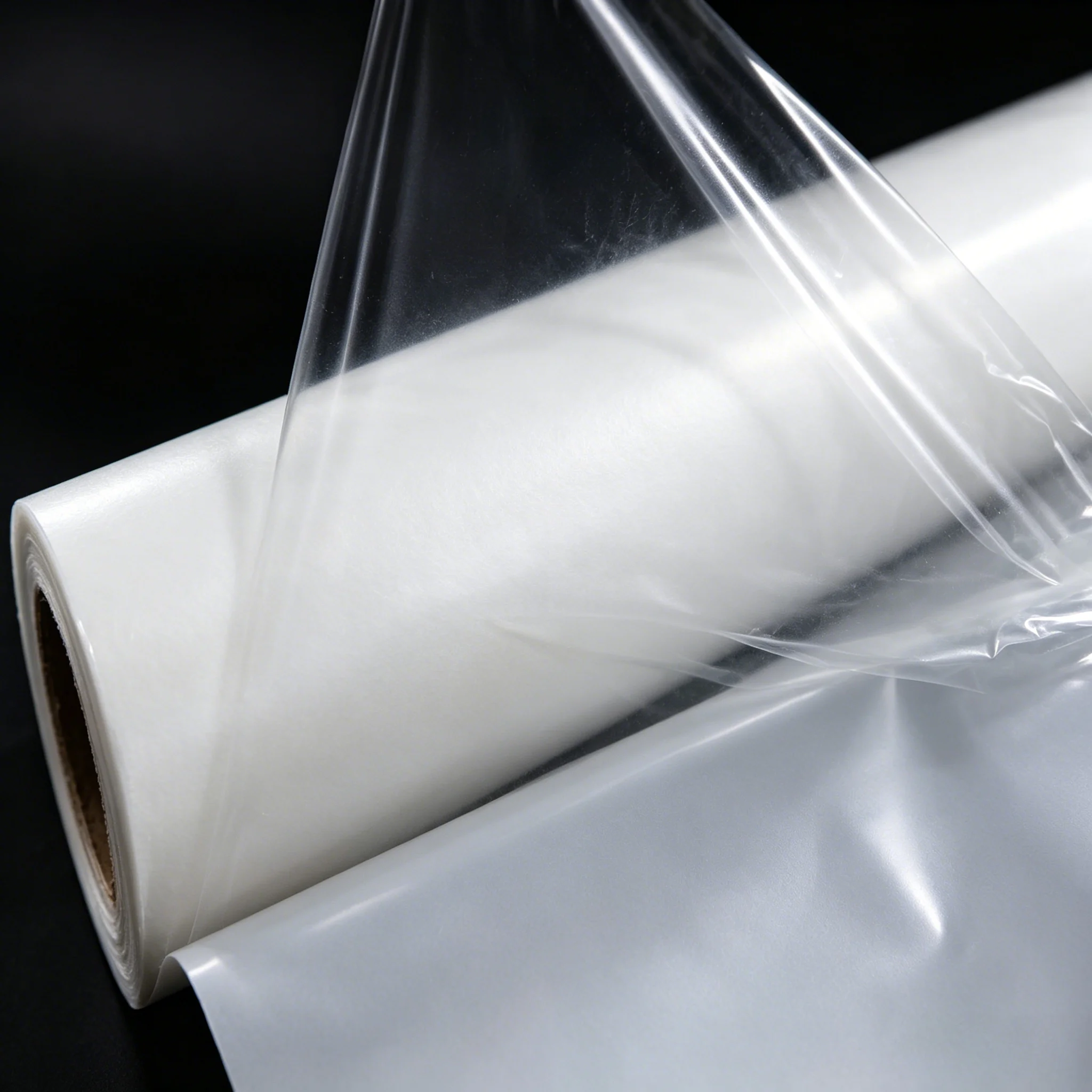

3. High Transparency & Seamless
Exceptional clarity leaves no glue marks, textures, or bulges post-lamination. Perfectly invisible, maintaining the fabric's original soft hand-feel for a premium, flat finish.
4. Eco-Friendly & Skin-Safe
Zero formaldehyde, halogen-free, and odorless. Gentle on the skin, passing environmental tests for intimate apparel. Safe for maternity, baby clothing, and medical gear.

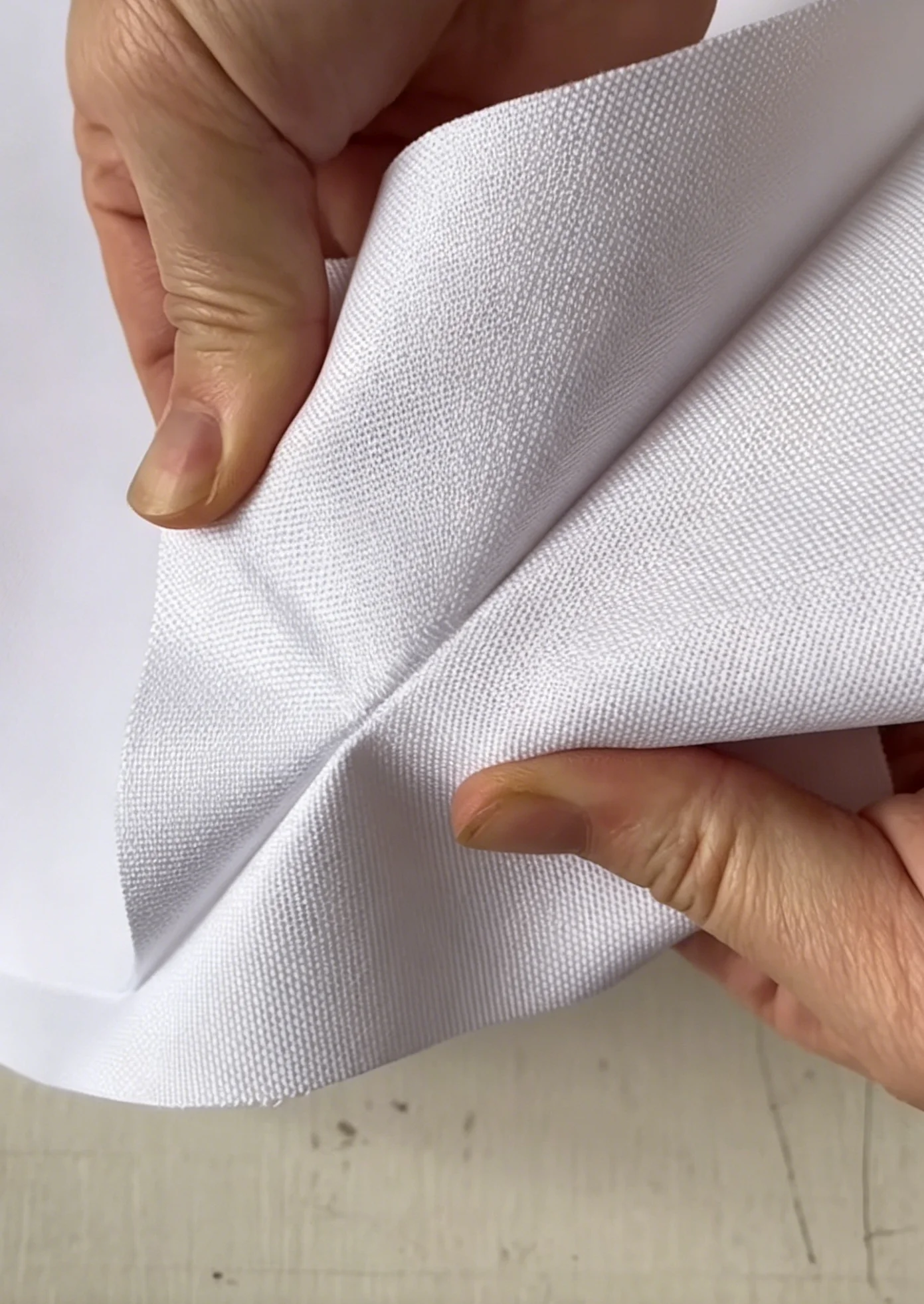

5. Multi-Fabric Strong Bonding
Strong adhesion to synthetic fibers, blends, and knits. Remains flexible at low temperatures and prevents glue seepage at high temperatures, ensuring year-round production stability.
Technical Specifications
Comprehensive data for factory selection and precise lamination.
Basic Physical Parameters
| Material Composition | TPU (Thermoplastic Polyurethane) |
| Appearance | Transparent film, impurity-free, uniform and flat |
| Peel Strength | ≥28N/25mm (Standard lamination conditions) |
| Elongation Rate | ≥300% High elastic stretch |
| Applicable Temp Range | -20℃ ~ 85℃ |
| Release Material | Single silicon release paper / Release PET film (Optional) |
| Storage Conditions | Dry, dark, moisture-proof, room temperature |
Complete Series Model Specifications (For Factory Selection)
| Model | Release Film | Elasticity | Melting Pt (℃) | Thickness (mm) | Width (mm) | Press Temp (℃) | Time (s) | Key Characteristic |
|---|---|---|---|---|---|---|---|---|
| HJU120 | No | Excellent | 105-120 | 0.015-0.10 | 5-1600 | 130-160 | 10-30 | Good elasticity, universal wash-resistant |
| XJU120 | Yes | Excellent | 95-110 | 0.025-0.60 | 5-1530 | 120-150 | 10-30 | Ultra-high elasticity, low-temp lamination |
| XJU150 | Yes | Superb | 125-145 | 0.03-0.40 | 5-1500 | 145-180 | 10-30 | Dedicated for waterproof fabrics, water-pressure resistant |
| XJU135 | Yes | Excellent | 105-120 | 0.05-0.40 | 5-1500 | 130-160 | 10-30 | High-quality fabrics, delicate bonding |
| JJU120 | Yes | Excellent | 105-120 | 0.025-0.40 | 5-1530 | 130-160 | 10-30 | Universal type, high cost-performance |
| PE-YJU120 | Yes | Excellent | 95-110 | 0.025-0.15 | 5-1530 | 120-150 | 10-30 | Ultra-thin intimate wear, soft & skin-friendly |
All categories of applicable fabric comparison table
Highly Recommended Fabrics
- ✓ Nylon Fabrics: First choice for underwear, swimwear, and activewear.
- ✓ Polyester: Outdoor jackets, sun-protective clothing, functional fabrics.
- ✓ Spandex Blends: Yoga wear, tight fitness apparel.
- ✓ Others: Knits, plain cloth, mesh, breathable fabrics, fleece.
Not Recommended
- ✕ Teflon Strongly Waterproofed Cloth: Surface is too slippery for reliable adhesion.
- ✕ Heavy & Stiff Denim: Lacks the necessary flexibility for optimal TPU integration.
- ✕ High Silicone Oil Finishes: Post-treatment silicone heavily repels hot melt adhesives.
Standard Lamination Process
Follow these factory-standard steps for perfect seamless bonding.
View Detailed Machine Calibration GuidePreparation
Ensure fabric is dry, oil-free, and silicone-free. Keep film at room temp.
Parameters
Set pressure to 0.2MPa, time 10-30s. Temp varies by model (120℃-180℃).
Lamination
Align fabric and film, apply heat press to melt and bond materials.
Cooling
Allow natural cooling. Do not peel release paper while hot to avoid stringing.
Inspection
Check for bubbles or weak spots. Avoid too high/low temp and uneven pressure.
Wide Range of Applications
Powering the next generation of apparel and gear across 15+ industries.
Seamless Underwear
Waistbands, cuffs, cup invisible bonding

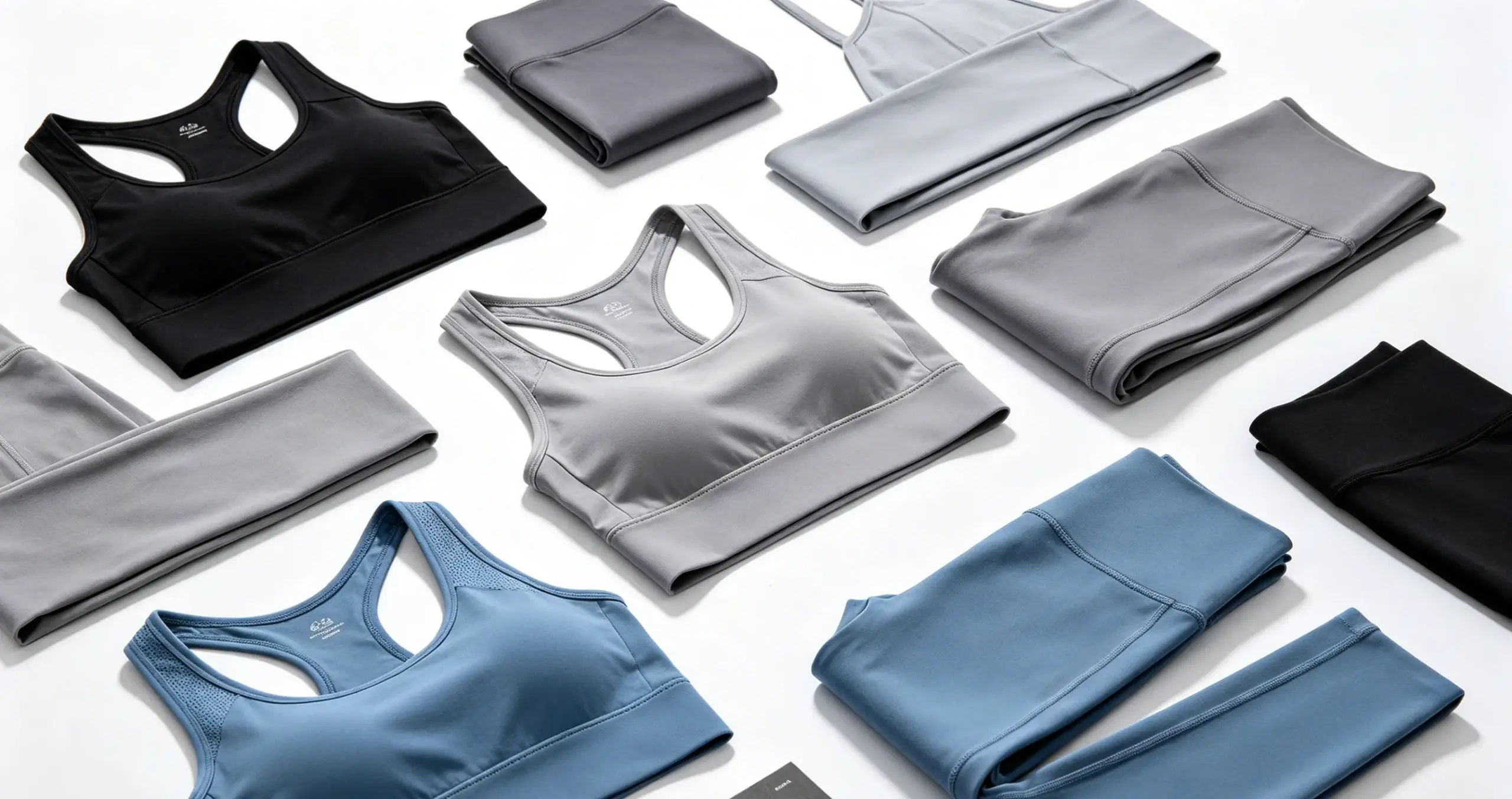

Yoga & Fitness
Stretch splicing, seamless hemming

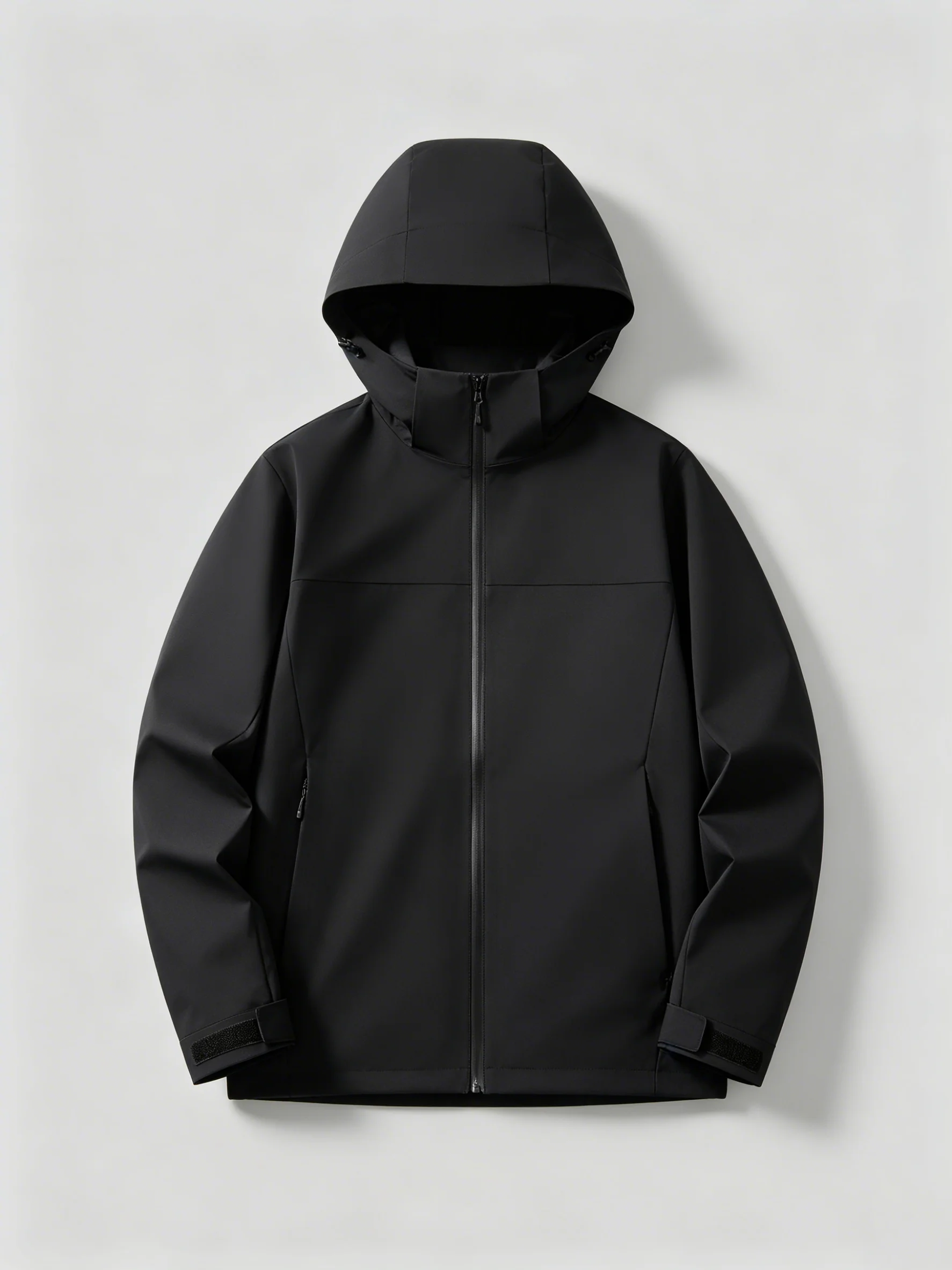

Outdoor Jackets
Waterproof sealing, windproof composite

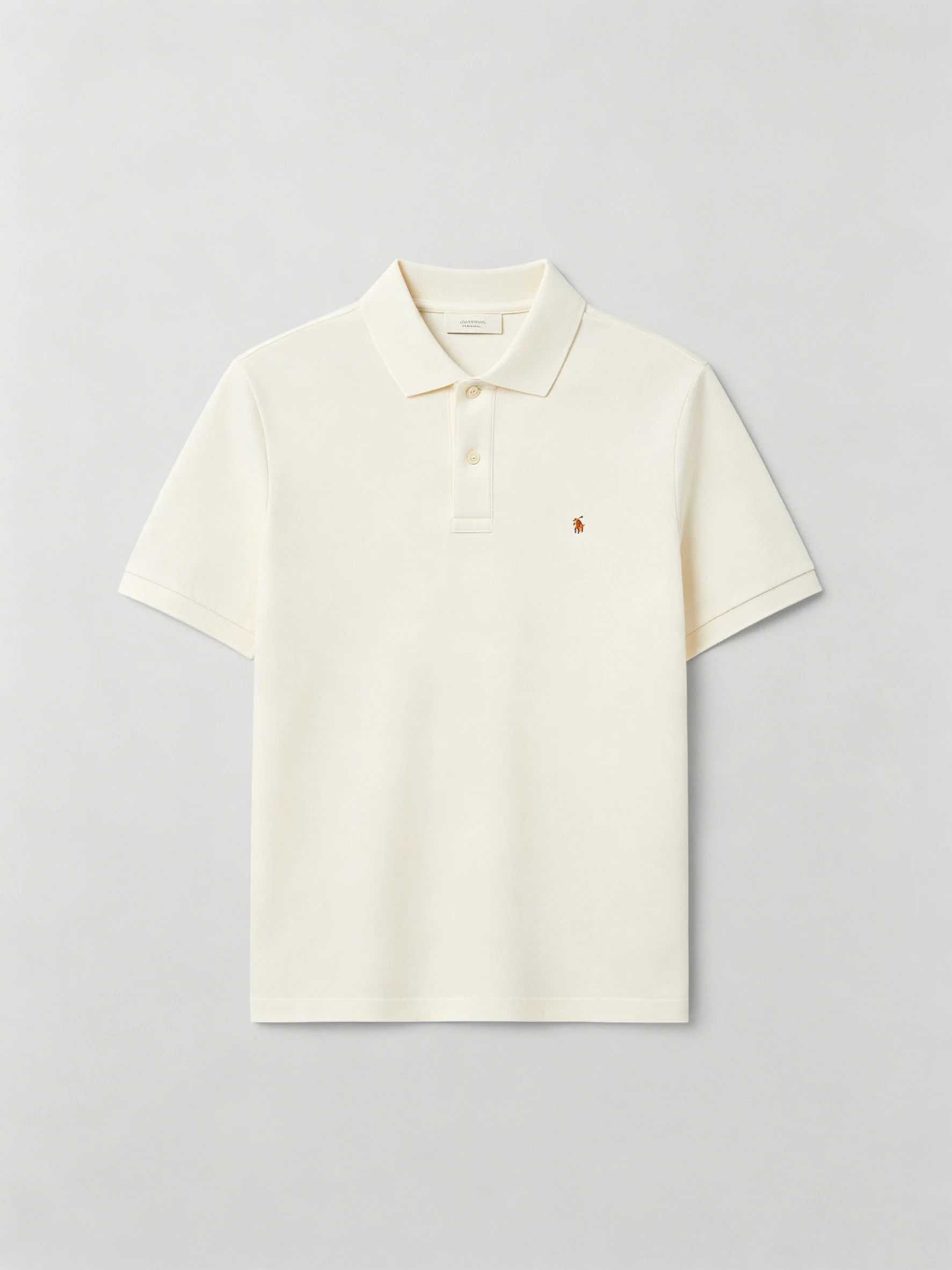

Casual Polo Shirts
Collar, placket, hem reinforcement

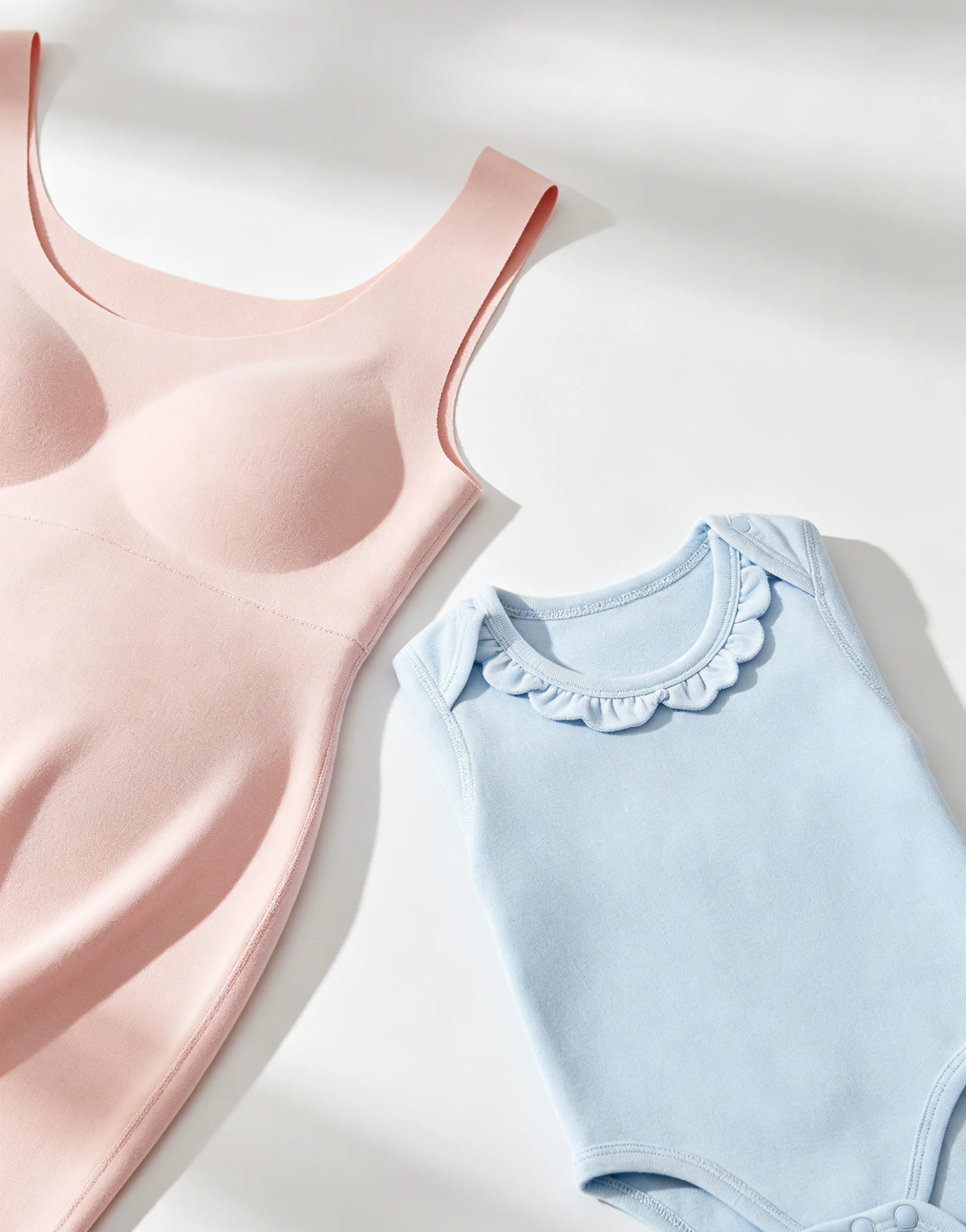

Maternity & Baby
Soft, non-irritating composite

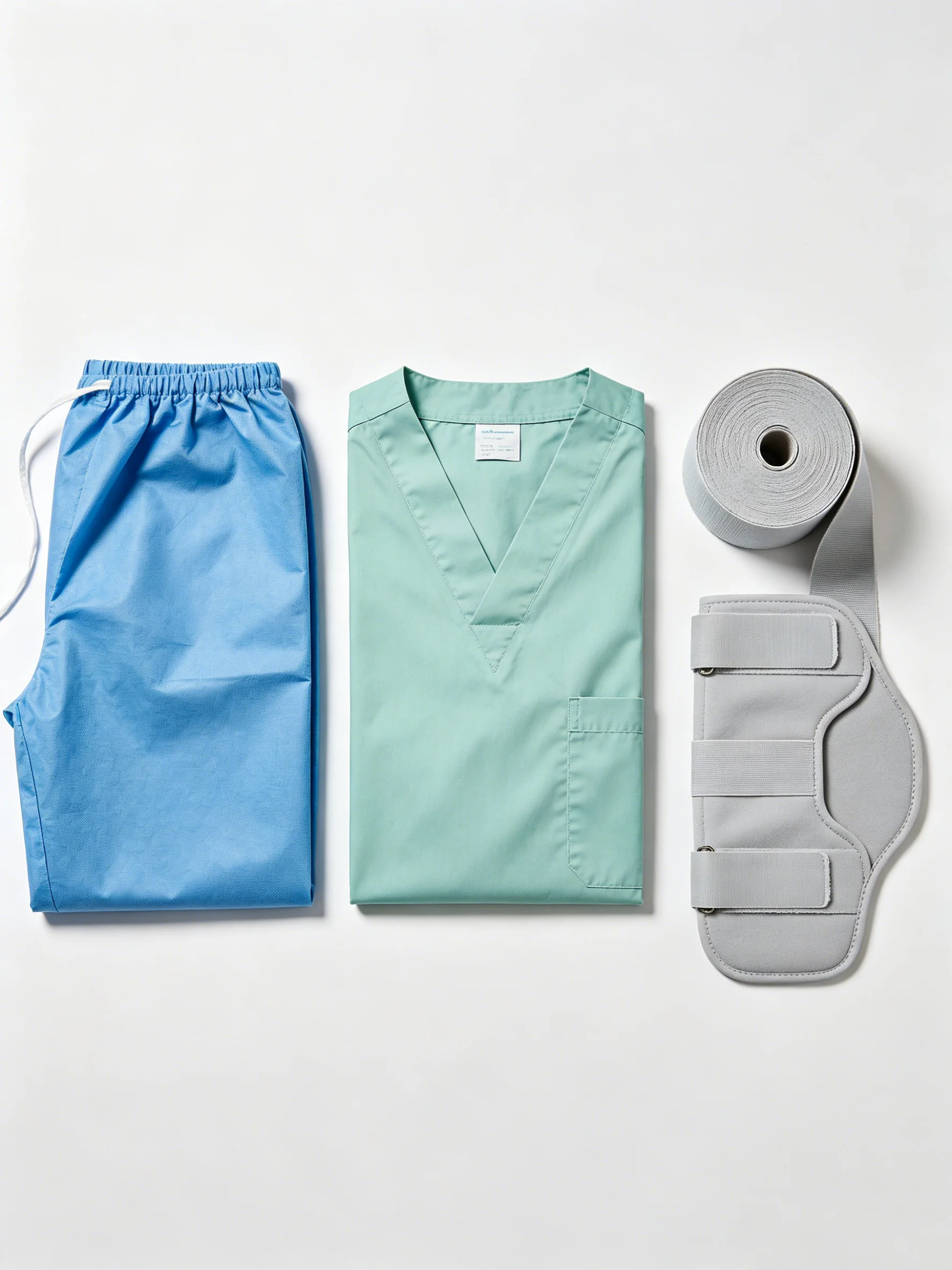

Medical Gear
Waist supports, elastic braces

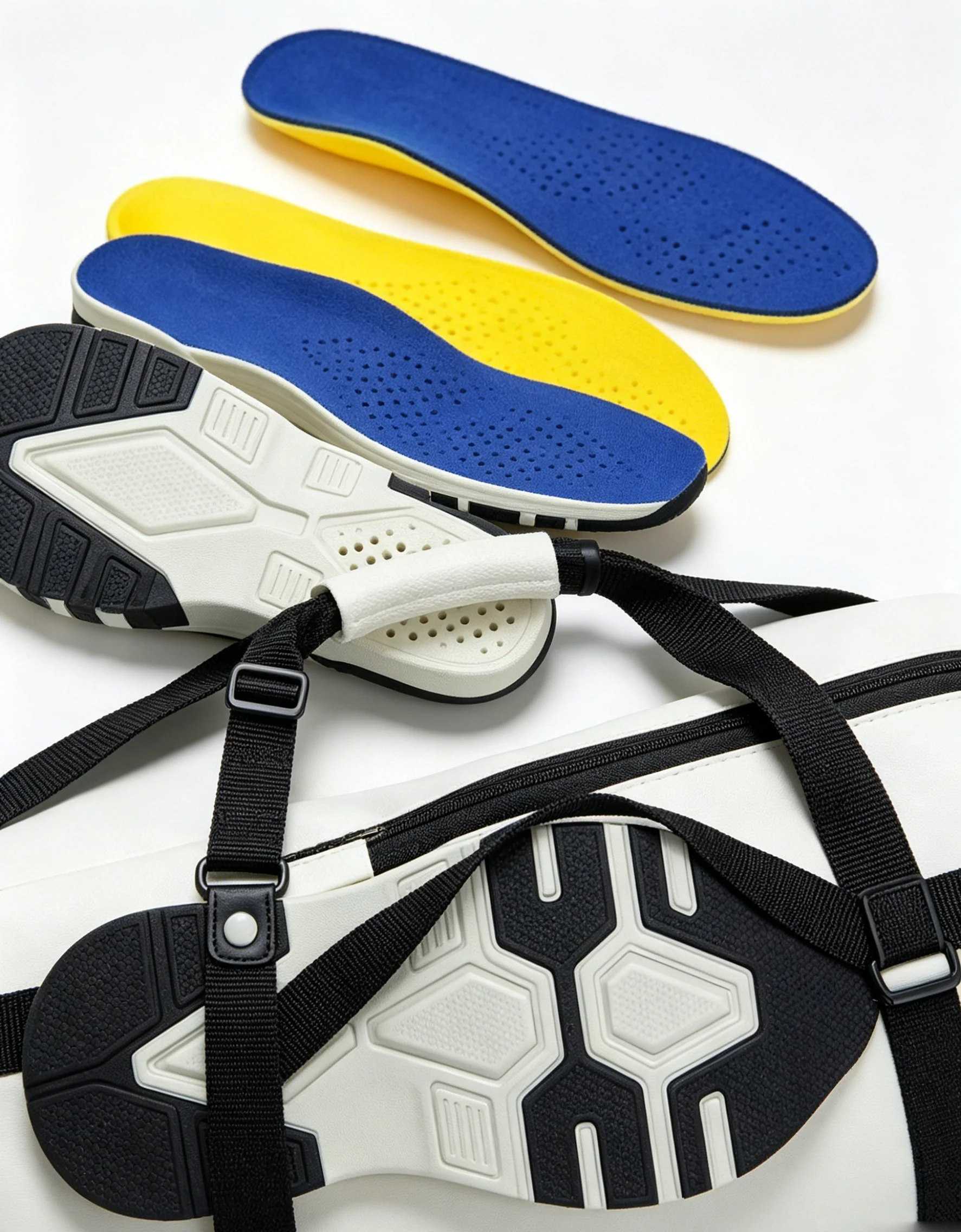

Footwear & Bags
Shoe upper composites, bag waterproof lamination, reinforcement
Comprehensive Service & Support
From storage guidelines to global logistics and personalized customization, we ensure a seamless and professional experience for your operations.
Storage & Shelf Life
Logistics & Shipping
- In-stock: 2-3 business days
- Custom slitting: 3-7 business days
- Bulk orders: 7-15 business days
Customization Services
We support full-parameter personalization to meet niche apparel and special process requirements:
- Thickness: 0.015mm - 0.60mm
- Width: 5mm - 1600mm free slitting
- Melting Point: Low 95℃ ~ High 145℃
- Processing: Slicing, rewinding, slitting, printed release
- Hardness: Ultra-soft intimate, high-elastic universal, strong-bond waterproof
